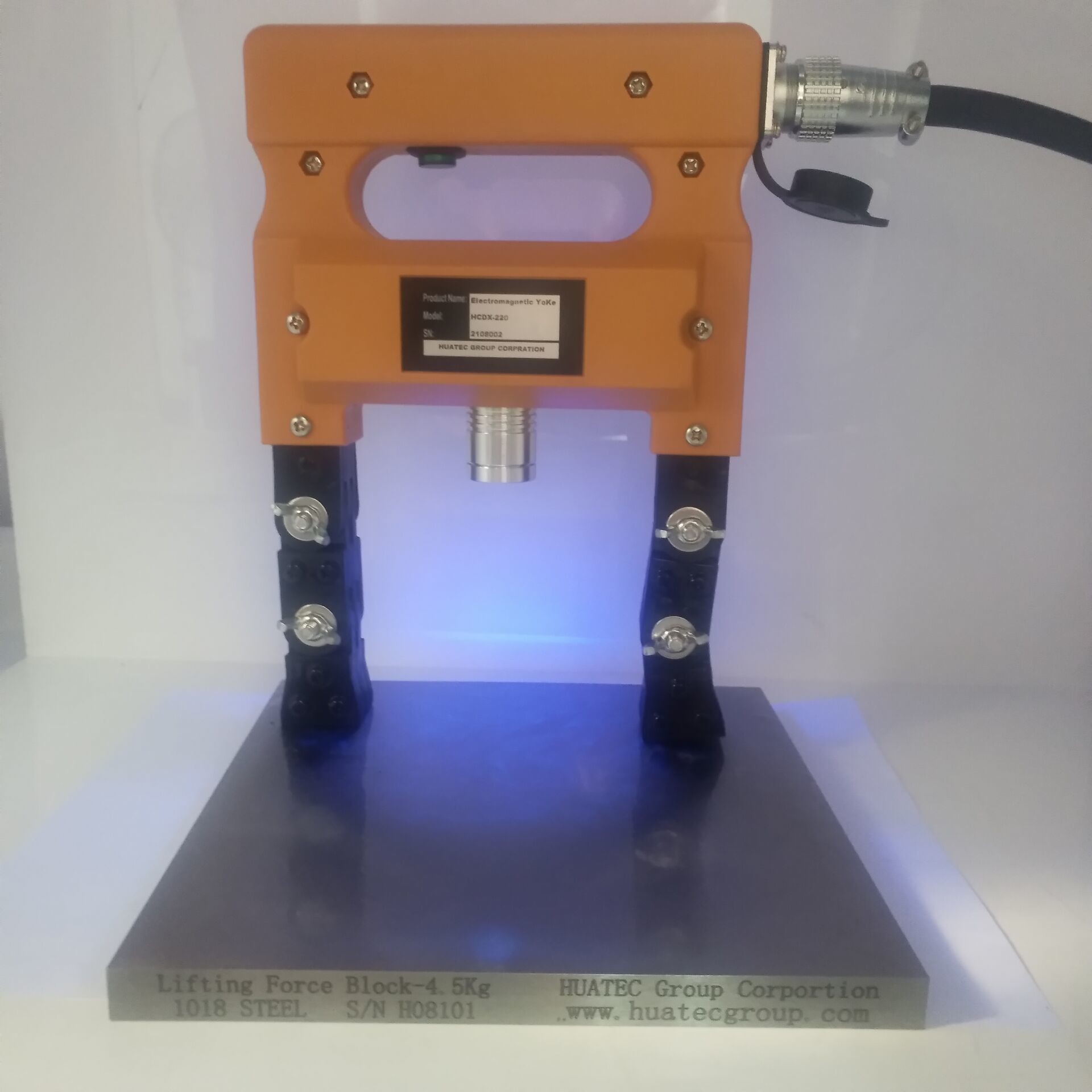

Built-In UV Lamp Water-Proof Shock Resistance 220V AC Magnetic Yoke Mag Particle Testing Equipment
This series of products are mainly used for the ferromagnetic material, weld and mechanical components of the magnetic particle testing. Probes using high-quality silicon steel, metallurgy and low loss ratio, adjustable magnetic pole head and the whole plastic shell such programs, which product has novel design, strong suction, voltage wide, multi-functional, and generalization characteristics. According to technical conditions, by using the voltage and control requirements to make series of products classify supply.
1, There should plus a small amount of lubrication on the pin joints before use.
2, Pressing the switch only after probe pole head to maintain good contact with the workpiece, switch should be released in time after probe leave workpiece. Avoid overheating failures which caused by improper operation of equipment.
3, HCDX-220 type power cable, such as configuration leakage protection plug, leakage protection function of plug should be checked if it normal before using.
4, When the user configuring HCDX-220 probe with main unit which from other manufacturers, should check the compatibility of the voltage and wiring
5, Lead section which connected to probe should not less than 0.75 square mm
|Product Name||Handy Yoke Flaw Detector|
|Rating Voltage||AC220V 50|
|Magnetization kind||Communion magnetization|
|Flat pole head suction||Above 6Kg|
|U shape head sensitivity||Use No.2 Magnetic indicator test, magnetic marks show clear|
|Magnetic head polar distance||10-200mm adjustable|
|Size and weight||170×150×50mm 2.5Kg|
|Mostly use||For the flat weld, fillet weld, special Weld Inspection|
|Button switches line No.||2,3|

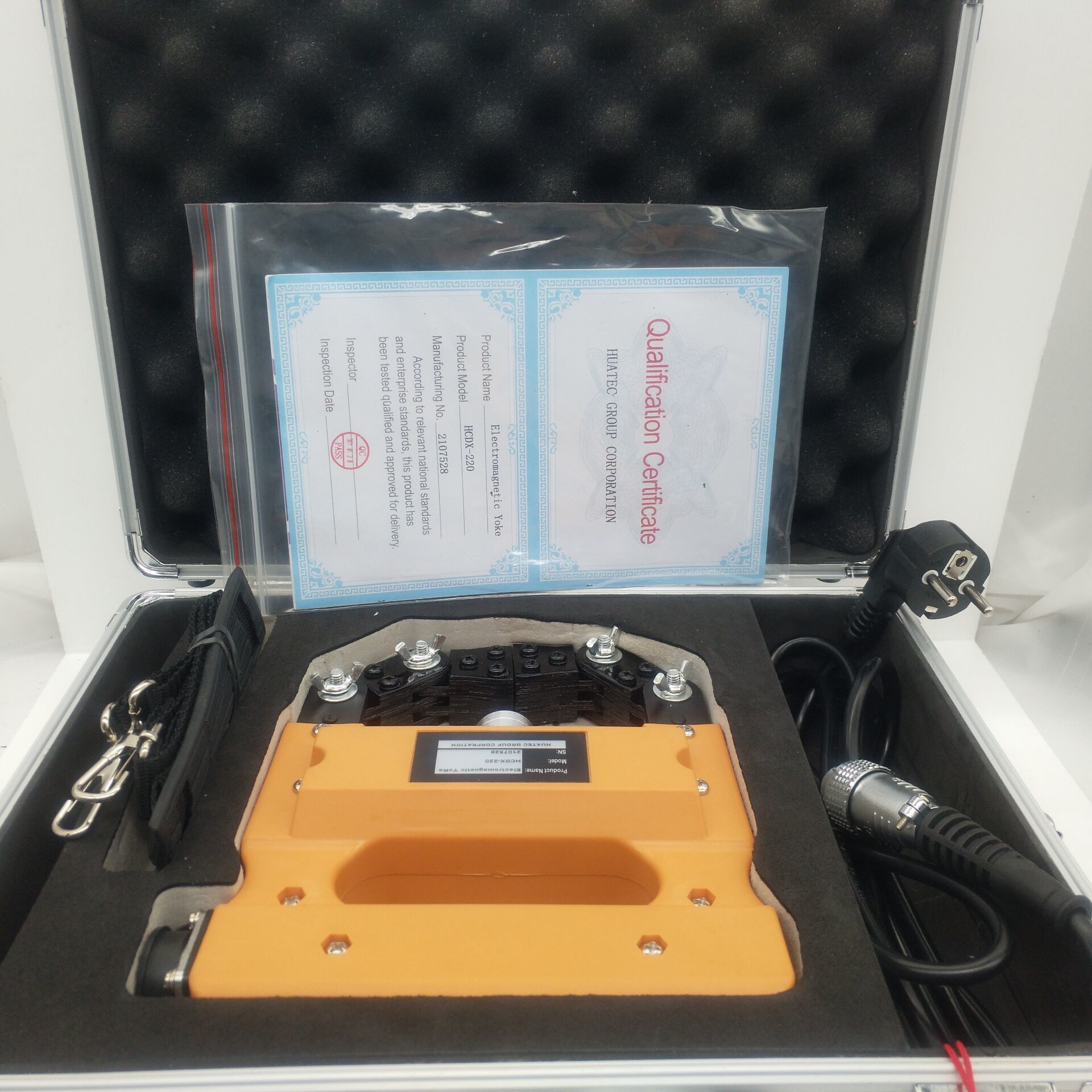

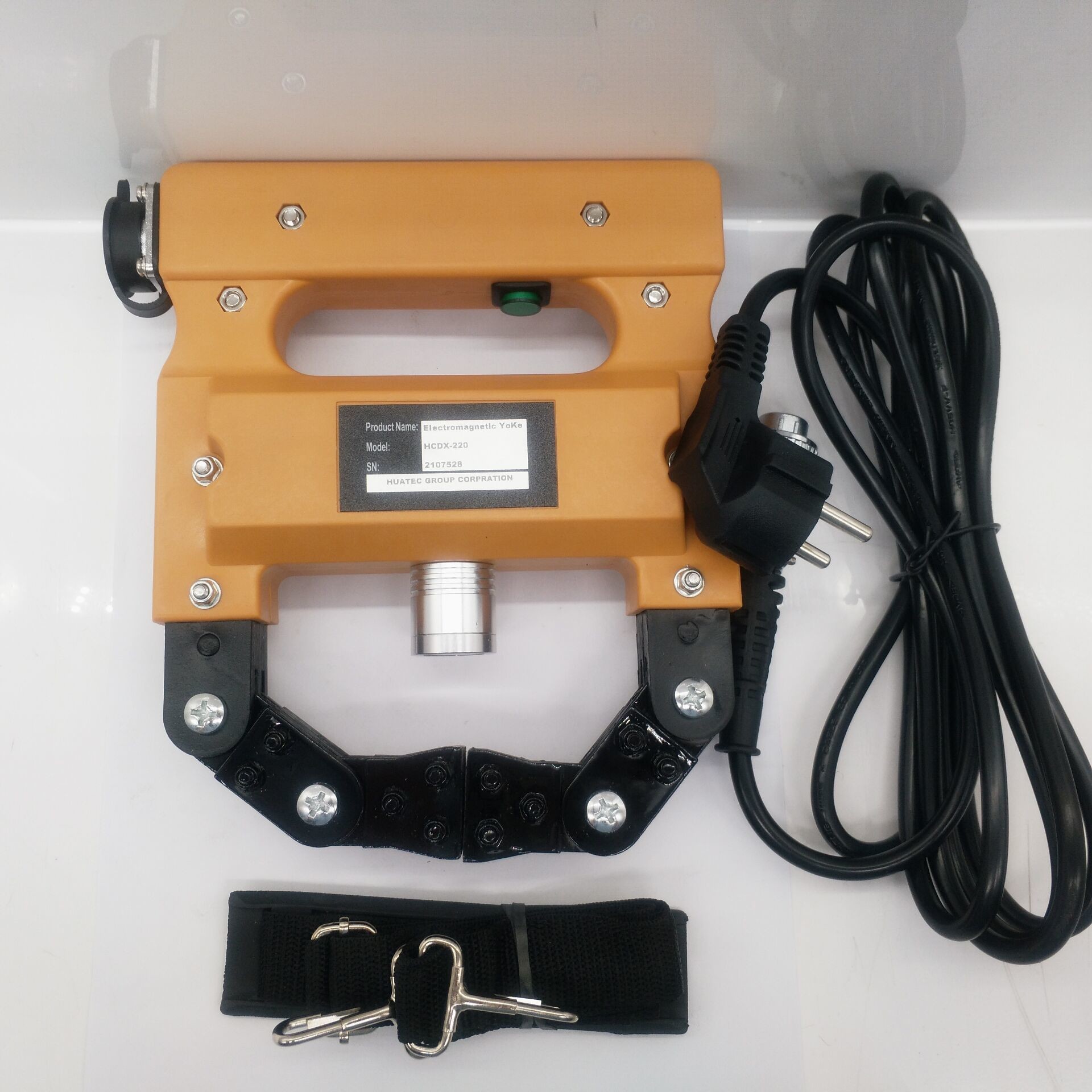

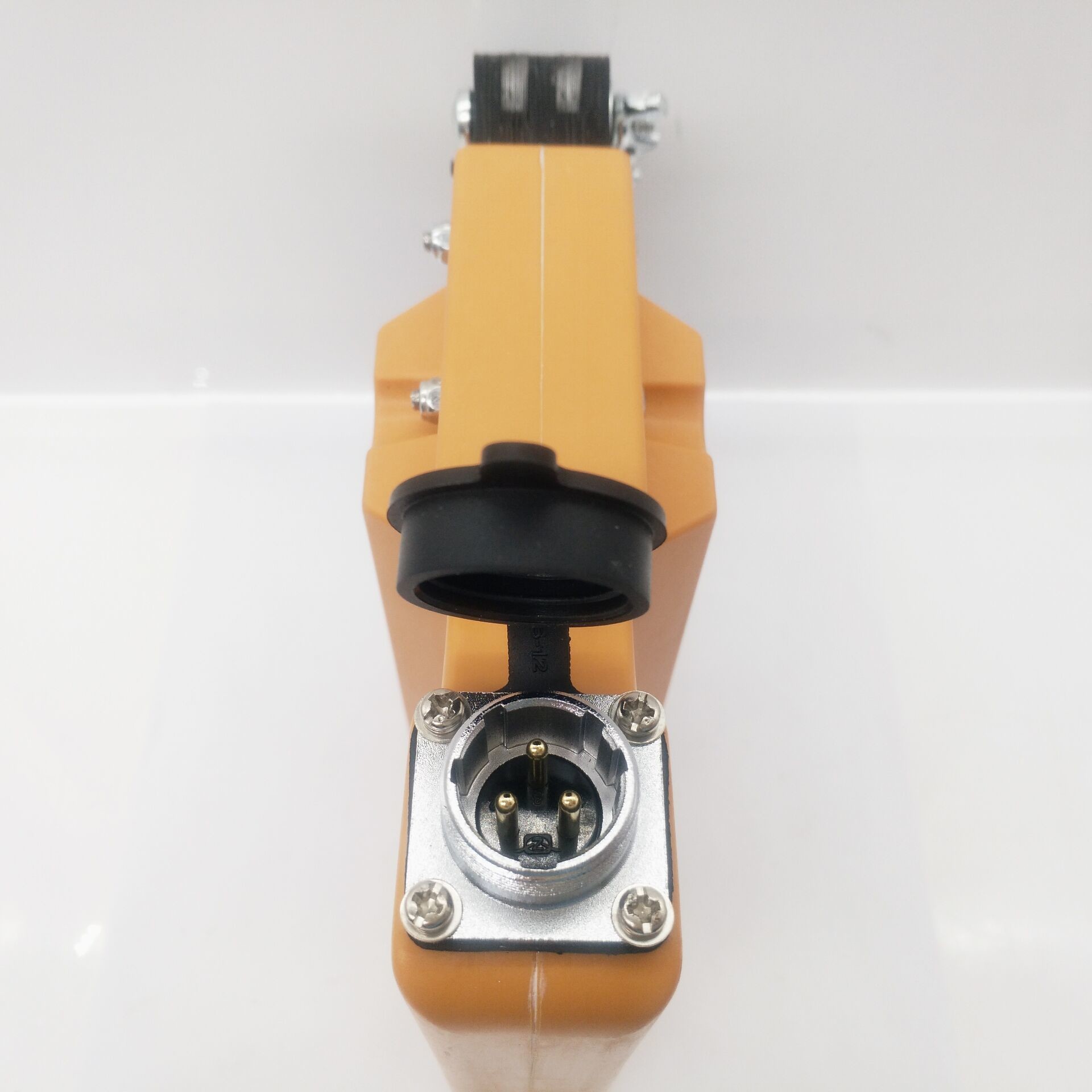

1. Handy Yoke Flaw Detector HCDX-220 1pc

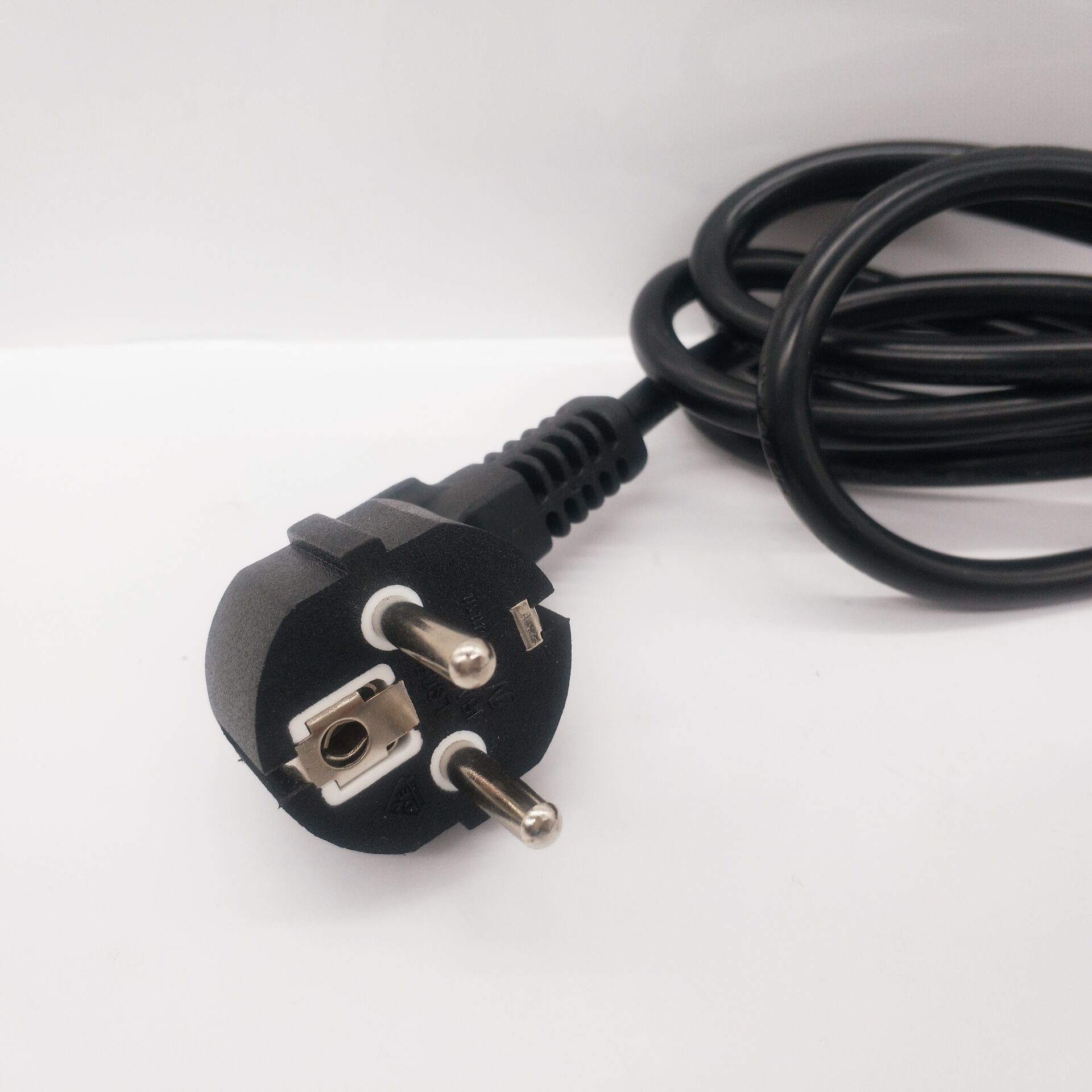

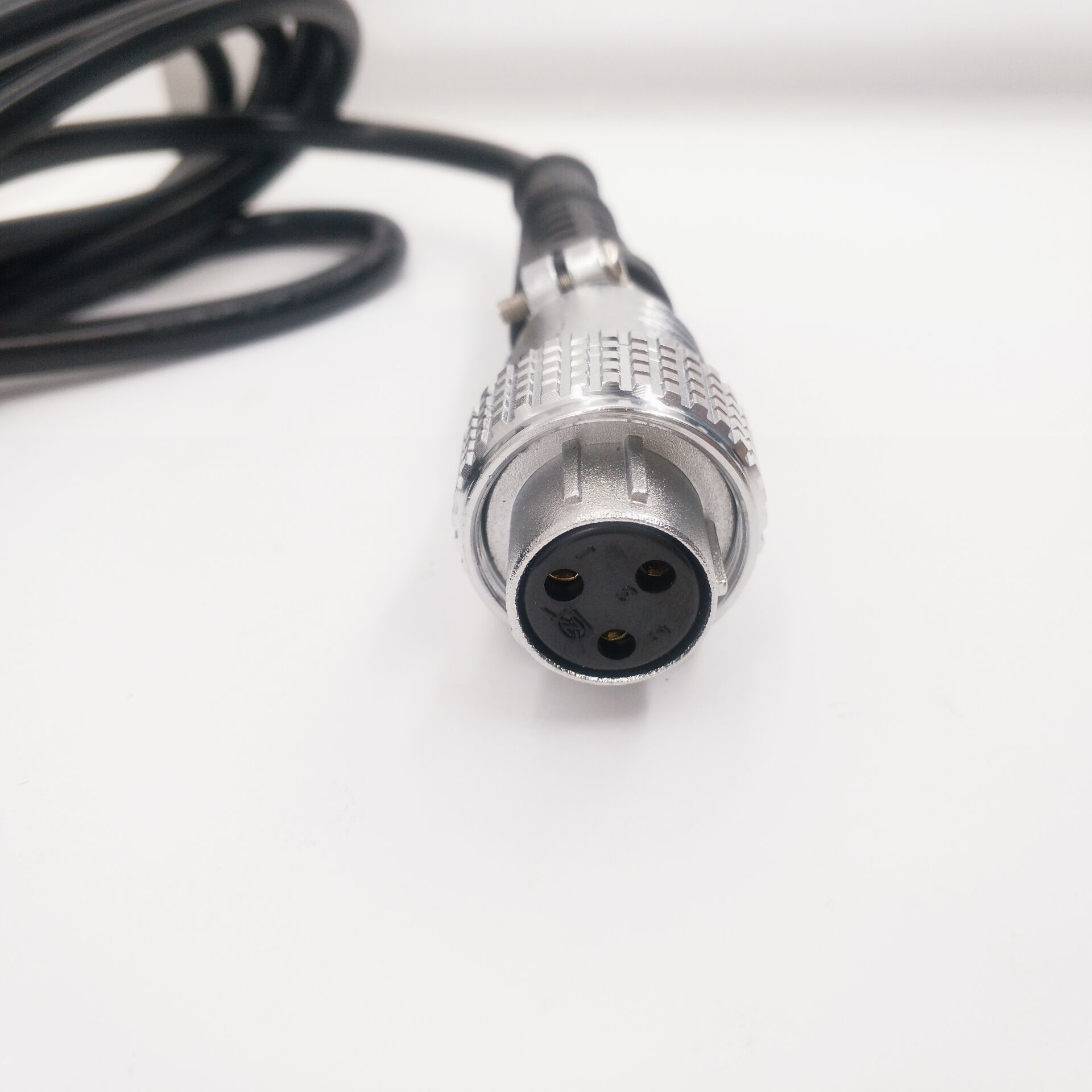

2. Power cable 1pc
3. Operation Instruction 1pc
4. Quality certificate 1pc
HUATEC Group is well-known brand in exporting and manufacturing of Magnetic Particle Testing Unit to overseas markets. This products use testing method by utilizing the Yoke method, to magnetize with some or all of test flaws placed between magnet electrodes and detect flaw of the object to be tested by inducting partial linear magnetic field to the test piece.
This method enables to easily and rapidly detect surface flaw of forged products or welding, part, etc
• To achieve the best inspection effciency
• To form a strong manetic field with a AC or DC type
• To apply dry, wet and fluorescent magnetic particles
• Excellent durability by using a molding type of rubber material with strong water-proof, shock resistance
• To test various objects to be tested by connecting middle poles
Principles of Magnetic Particle Testing
When the material or part under test is magnetized, discontinuities which lie in a direction generally
transverse to the direction of the magnetic field will cause a leakage field to be formed at and above
the surface of the part. The presence of this leakage field and therfore the presence of the discontinuity
is detected by the use of finely divided ferromagnetic particles applied over the surface, some of these
particles being geared and held by the leakage field.
The magnetically held collection of particles forms an outline of the discontinuity and indicates
its location, size, shape and extent.
