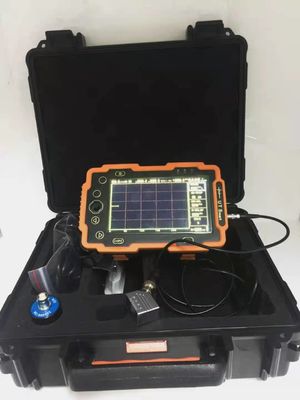

DAC AVG DGS Curves Portable Usm Go Ultrasonic Flaw Detector

I'm Online Chat Now
Certification
China HUATEC GROUP CORPORATION certification
China HUATEC GROUP CORPORATION certification
HUAEC brand hardness tester,ultrasonic thickness gauge, surface roughness tester,very good quality,we are very satisfied with them,Kumaren Govender Sotuth Africa

—— Kumaren Govender

I like the HUATEC service, I like the shore durometer, coating thickness gauge,calibration blocks, ultrasonic flaw detector, very quick response, professional work. Aret Turkey

—— Aret Kaya

Wide range of NDT products, Magnetic particle flaw detector, x ray flaw detector, pipeline crawler,phased array equipment,eddy current conductivity meter and eddy current flaw detector,we can get all in huatec group. We prefer to buy from them. Rudolf Shteinman Russia

—— Rudolf Shteinman

we are reselling HUATEC ultrasonic flaw detector FD201B and ultrasonic flaw detection equipment FD520, x-ray flaw detector XXG2505,very good quality, good price. easy software updating after purchasing. Mansoor India

—— Mansoor

We have long term bulk sell of huatec coating thickness meter TG-8828 and vibration meter, good quality, good service, fast delivery. Yilmaz Demir Turkey

—— Yilmaz Demir

More than 10 years cooperation with HUATEC Group,we like surface roughness tester portable,surface profile gauge,concrete test hammer,magnetic yoke flaw detector,Infrared thermometer,holiday detector,wire rope flaw detector etc.

—— Behnam Sohrabi

DAC AVG DGS Curves Portable Usm Go Ultrasonic Flaw Detector

DAC AVG DGS Curves Portable Usm Go Ultrasonic Flaw Detector
DAC AVG DGS Curves Portable Usm Go Ultrasonic Flaw Detector

Large Image :  DAC AVG DGS Curves Portable Usm Go Ultrasonic Flaw Detector Get Best Price

Product Details:

Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: FD530mini

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Detection Range: 0-1000 Mm, At Steel Velocity Sound Velocity: 1000~9999m/s
Working Methods: Pulse Echo, Dual, And Thru-transmission Sensitivity Leavings: ≥50 DB
Power: AC Mains 100-240 VAC, 50-60 Hz Net Weight: 0.68 (include Li-ion Battery)
Size: 162×105×42mm All Tools Included: DAC, AVG, AWS, Etc
Dynamic Range: ≥36dB Linearity: Horizontal Error: Not More Than 0.1% In The Scanning Range
Battery Working Time: 10 Hours Nominal Operating Time Depending On Display Brightness Memory: Big Memory Of 500 A Graph
Product Name: Ultrasonic Flaw Detector Alarm: Three Modes, I.e. Forbidden Wave, Loss Wave And Auto
Interface Type: LEMO 00
High Light:

DAC portable ultrasonic flaw detector

,

Portable usm go ultrasonic flaw detector

,

usm go ultrasonic flaw detector

Digital Portable DAC, AVG DGS Curves USM Ultrasonic Flaw Detector GO Portable Flaw Detector





This is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a work-piece without destruction. It can be used both in a lab and field. The instrument can be widely used in any fields that need defect inspection and quality controlling e.g. manufacturing industry, iron & steel metallurgical industry, metalworking, chemical industry, etc., also be broadly used in the active safety inspection and service-life evaluation in such fields as aerospace, railway transportation and boiler pressure vessels, etc. It is an essential instrument for non-destructive inspection industry.

When the ultrasonic wave propagates in a job, one can detect the defect in it by the influence on the propagation of ultrasonic wave based on the acoustic characteristic demonstrated by the defect in the material. Based on this principle, by using ultrasonic wave one can measure such defects as crack, pinhole and inclusion in such media as metal, non metal and composite, etc.

Performance Features

  • The dual CPUs work in coordination, high speed detecting and data processing;
  • Automatic calibration;
  • Easy tests of thickness and sound velocity of materials;
  • Freely set standards for various industries to meet different flaw detection
  • Automated display precise flaw location(Depth d,level p,distance s,amplitude,dB,diameter ф);
  • Freely set standards for various industries to meet different flaw detection
  • The echo suppression is adjustable from 0 to 90%, without affecting the dB gain and linearity
  • DAG and AVG(DGS) curves are generated automatically;
  • Muti-functions for easy detection: peak memory, Display freeze, automatic gain & wave search;
  • Li -battery, continue working time up to 10 hours;
  • Storage: 500 sets of flaw detection process and data storage;
  • Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles;
  • USB connects to computer,automatically generate flaw detection report;



Technical Parameters



Item Technical Data
Range of scanning (mm) Range of scanning (mm):0~1000
D-delay (ms) D-delay (ms):0~5000
MTLVEL(m/s) MTLVEL:1000~9999
Working mode Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe)
Frequency Range (MHz) 0.5~10
Gain adjustment (dB) 0~110
Reject 0%~80% of screen height
Vertical linear error Vertical linear error is not more than 3%
Horizontal linear error Not more than 0.1% in the scanning range
Sensitivity Leavings ≥50 dB
Dynamic range ≥36dB
Alarm Three modes, i.e. forbidden wave, loss wave and auto
A-Scan display area

Full screen or local

A-Scan display freezing and de-freezing A-Scan filling

Data save 500 A-Scan images (including setting of instrument)
Standard communication interface with PC USB
Measuring unit mm/inch
Battery Li battery 3.6V 3000mAh * 4
Power adaptor 4.2V DC 220AC
Working temperature -20℃~50℃
Working humidity 20%~90%
Port type LEMO
Overall dimension (mm) 162×105×42
Weight (kg) 0.68 (include Li-ion battery)

DAC AVG DGS Curves Portable Usm Go Ultrasonic Flaw Detector 0


Standard delivery

Designation

Quantity

Main unit 1
4.2V power adaptor 1
probe connecting cable 1
Carrying case 1
Instruction manual 1
Straight probe 1 (Dia 20mm, 2.5MHz)
Angle probe 1 (13×13, 60°, 2.5MHz)

Optional Accessories

Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (Lemo 01-BNC)
Connection cable to probe (Lemo 01-Lemo 00)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
Test block V1
Test block V2
Test blocks DAC, ASME etc.
