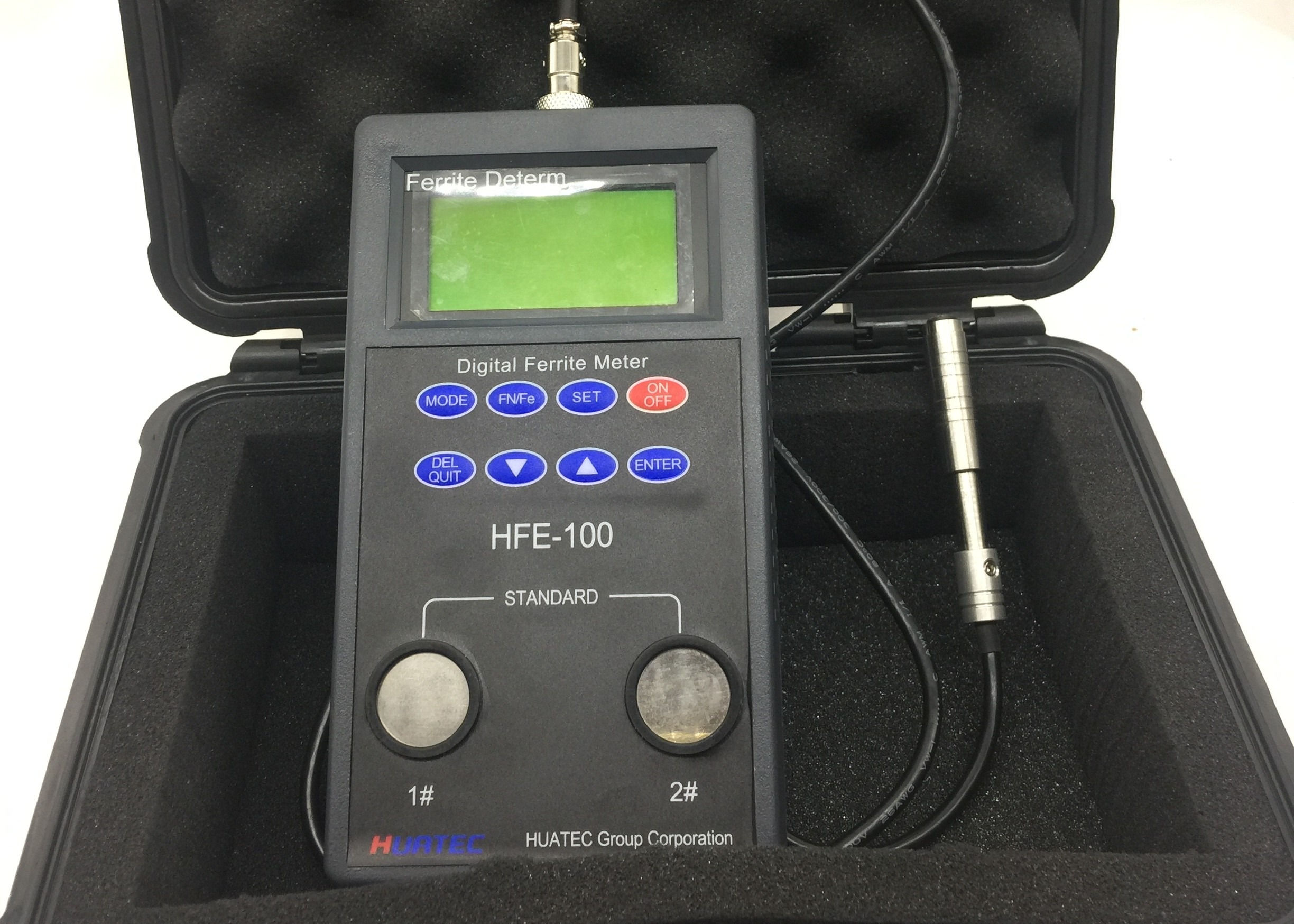

DIN EN ISO 17655 HUATEC Magnetic Inductive Ferrite Meter

DIN EN ISO 17655 HUATEC Magnetic Inductive Ferrite Meter
DIN EN ISO 17655 HUATEC Magnetic Inductive Ferrite Meter

Large Image :  DIN EN ISO 17655 HUATEC Magnetic Inductive Ferrite Meter Get Best Price

Product Details:

Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HFE-100

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Principle: Magnetic-Inductive Method Display Mode: Two Display Modes (SAVE And FREE): Single Testing Value Or Continuous Testing Value
Display Units: Two Units Display: Fe% (ferrite Content) And FN (WRC Number, Amount Of Ferrite) Statistics Function: Mean Value, Max Value, Min Value, Standard Deviation Value.
Power Off: Auto Power Off Function Standards: GB/T1954-2008、DIN EN ISO 17655, ISO 8249 And ANSI/AWS A4.2
Testing Range: 0.1~80%Fe , ( 0.1~110)WRC-number Accuracy: ±2% (range 0.1~30%Fe), ±3% (range 30~80% Fe)
Resolution: 0.1%Fe, 0.1FN Operation Temp.: 5 ~ 40℃
Battery: 9v 6F22 Size: 175X100X38mm
Weight: 1kg
High Light:

HUATEC ferrite meter

,

Magnetic Inductive Ferrite Meter

,

9v battery ferrite meter

Feritscope digital ferrite meter with magnetic-inductive method to determine ferrite content of austenitic steel and duplex steel etc. good ferrite meter price HUATEC HFE-100.



Physical principles of magnetic-inductive measurement

With the magnetic-inductive method, the ferrite content can be determined quickly and non-destructively in accordance with the Basler standard and DIN EN ISO 17655. For example, weld seams on austenitic steel can be checked on site and repaired if necessary.



Measuring the ferrite content to be easy

Sometimes, knowing the exact ferrite content is essential. Especially wherever austenitic steels and duplex steels have to withstand heat, aggressive chemicals and/or high pressure. If the ferrite content is too low, for example in the area of weld seams, this can lead to a loss in strength. On the other hand, too-high ferrite content reduces corrosion resistance, toughness and ductility. you can check the ferrite content with the HUATEC HFE-100.

This handy ferrite meter HFE-100 lets you measure the ferrite content anytime, anywhere – it’s fast, precise and non-destructive. The advantages of the robust handheld device come to be easy when used in chemical plants, energy plants and process engineering plants.



1. Application

In the chemical industry the stress-bearing members of containers,pipes,reactor vessels and other plant are usually made of austenitic steel or duplex steel or cladding of austenitic chromium-nickel steel.The residual ferrite content must be within a specific range compatible with the mechanical strength requirements or the item concerned.

The HFE-100 was developed to facilitate accurate ferrite content measurements On welded seams and cladding items.

To measure the content of ferrite in stainless steel

To measure the content of ferrite in alloy steel

To measure the content of ferrite in welding part



2. Feature

● Working principle:Electromagnetic induction

● LCD display,

● Two display modes (SAVE and FREE): single testing value or continuous testing value.

● Two units display: Fe% (ferrite content) and FN (WRC number, amount of ferrite).

● Statistics display together with measurements, mean value, Max value, Min value, standard deviation value.

● Auto power off function

● Meet standards of GB/T1954-2008,ISO 8249 and ANSI/AWS A4.2.

● Standard two calibration blocks

●500 data memory



3. Technical data

The meter is mainly used for the determination of the ferrite content of welded austenitic steel or Duplex or cladding of austenitic chromium-nickel steel weld.

Range 0.1~80%Fe , ( 0.1~110)WRC-number

Accuracy: ±2% (range 0.1~30%Fe), ±3% (range 30~80% Fe)

Resolution: 0.1%Fe, 0.1FN

Operating temperature 5 ~ 40℃

Batteries 9v 6F22

Size: LX WX H 175X100X38mm



4. Notice

Notice

Probes are very sensitive element, on the measurement process it should be gently placed on the sample.

The following should be noted:

●The weld to be completely cooled before measurement, the probe can be in contact with the specimen gently.

● If using an external power supply, be sure to remove the battery first.

● Don’t disassemble or beat the probe, otherwise it will cause the parameter changes.

● Take off the battery for a long time without using the instrument.



5. Standard delivery

Main unit, probe, two calibration sample piece, carrying-case, operating manual, certificate.



DIN EN ISO 17655 HUATEC Magnetic Inductive Ferrite Meter 0
