Compact Design X-Ray Flaw Detector X Ray Film Developer Machine 31kgs Weight

1
MOQ
Compact Design X-Ray Flaw Detector X Ray Film Developer Machine 31kgs Weight
Features Gallery Product Description Request A Quote
Features
Specifications
The Running Time: 6-15min. (10-Gear Adjustable)
Inlet Speed: 90 Mm/min (6 Minutes When Running Time)
Development Time: 90-210 Sec
Water Temperature: 5~30 Degrees
Size Of Film: Min.5x10cm Up To 35cm Width
Tank Volume: 6 Liters (per Dosing Capacity)
Size: 41x52x42cm
Weight: 31kgs
Power: 220-240v6A 50 Or 60Hz
High Light:

welding x ray machine

,

industrial x ray machine

,

x ray inspection equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: HUATEC
Certification: ISO CE
Model Number: HDL-340
Payment & Shipping Terms
Packaging Details: in carton
Payment Terms: T/T, Western Union
Supply Ability: 500
Product Description

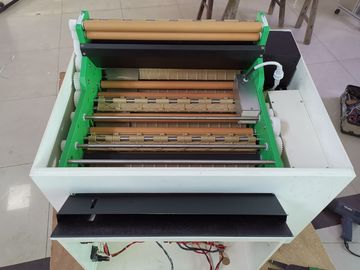

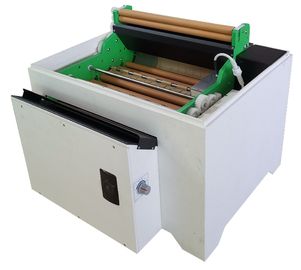

Filed X Ray Film Developer Machine Film Developer Film Processor HDL-340



Compact design with small footprint for mobile and filed operations;

Integrated design of development, fixing and drying axle frame system;

The use of non-piping design.





Technical parameter

1. Size of film: Min.5x10cm up to 35cm width

2. Running time: 6-15min. (10-Gear Adjustable)

3. Inlet speed: 90 mm/min (6 minutes when running time)

4. Development time : 90-210 sec

5. Tank volume :6 Liters (per dosing capacity)

6. Development temperature: 23-35 degrees can be adjusted

7. Fixed temperature : adjusted automatically according to development temperature

8. Drying temperature : 65 degrees

9. Water temperature 5~30 degrees

10. Water consumption: 1.6 L/min in film operation (when rinsing film);Water-free cycle design can also be used

11. Power: 220-240v6A 50 or 60Hz

12. Weight: 31Kg (No liquid in the groove)

13. Demension: 41x52x42cm



Compact Design X-Ray Flaw Detector X Ray Film Developer Machine 31kgs Weight 0Compact Design X-Ray Flaw Detector X Ray Film Developer Machine 31kgs Weight 1Compact Design X-Ray Flaw Detector X Ray Film Developer Machine 31kgs Weight 2
