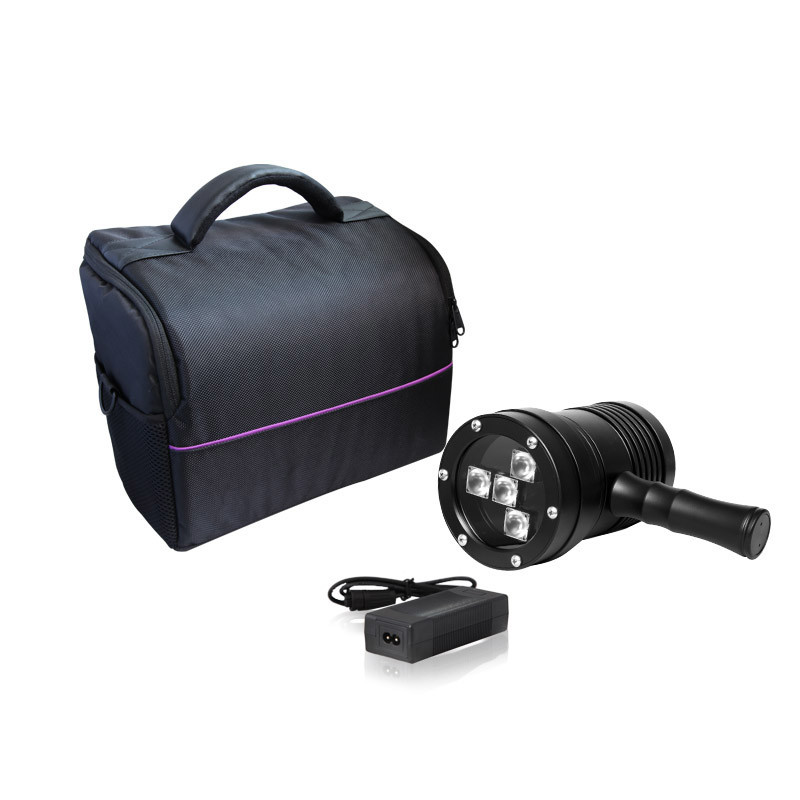

Aluminum Alloy Magnetic Particle Testing Handheld 365nmLED Cold Light UV Lamp

Aluminum Alloy Magnetic Particle Testing Handheld 365nmLED Cold Light UV Lamp
Aluminum Alloy Magnetic Particle Testing Handheld 365nmLED Cold Light UV Lamp Aluminum Alloy Magnetic Particle Testing Handheld 365nmLED Cold Light UV Lamp

Large Image :  Aluminum Alloy Magnetic Particle Testing Handheld 365nmLED Cold Light UV Lamp Get Best Price

Product Details:

Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: DG-100 100D

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Color: Black Ultraviolet Illumination: DG-100D: 9000uW/cm2 DG-100: 16000uW/cm2
Power Supply: AC100~240V 50/60Hz Diameter Of Light Inlet Window: Diameter Of Light Inlet Window
High Light:

mt test specimen

,

magnetic strenght meter

Aluminum alloy Handheld LED cold light UV lamp 365nm Ultraviolet band IEC 60529



DG series LED UV lamp is researched and developed by our company aim for fluorescence magnetic particle inspection, fluorescence reentrant inspection etc. The handheld type and cold light source is ready for use anytime. Features of all aluminum alloy structure, ultra-high illuminance and ultra-low power dissipation. It conforms the National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015).

Range of Application

Main Application

  1. Fluorescence Penetrant Testing
  2. Fluorescence Magnetic Particle Flaw Detection
  3. Fluorescence Leak Detection

Other Application

  1. Oil Stain, Blot Testing
  2. Special Gas, Oil and Gas Pipeline Testing
  3. Fluorescence Reflection Detection for Special Materials
  4. Criminal Investigation and Legal Medical Expert Survey
  5. Paper Money Authentication, Jewel Appreciation
  6. Agriculture, Foodstuff, Medical Treatment and other relevant industries.

Characteristic and Performance

HUATEC DG Series adopts high-power 365nm Ultraviolet band LED Lamp Beads produced by Japanese NICHIA company, free from UV-B and UV-C element, pure spectrum.

  1. The lifetime of Lamp Beads reach up to 20000 hours, efficient, energy conservation and environmental protection.
  2. High power output, quick start, can reach the maximum illuminance as soon as switched on.
  3. Ultra-low power, ultra-high efficiency. Cold operated with cold light source, long term stability output the illuminance.
  4. Optical filter is high UV transmittance transparent Quartz optical glass.
  5. The shell of the instrument is made of 6061-T6 high strength aluminium alloy precision machining. The surface is anodized, sturdy and durable.
  6. The built-in efficient cooling fin and low noise high speed fan dissipate the heat through aluminium alloy shell integrally.
  7. With anti magnetic interference function, it can be used in high-intensity magnetic field.
  8. Both switch and jack socket are at the end of the instrument, make it convenient to use and avoid misoperation.
  9. The product has passed through International Standard of IEC 60529 dustproof and waterproof testing, wider working environment and more reliable.

Specifications



Parameters



Mode



DG-100 DG-100D
Maximum Central Intensity of Ultraviolet Ray at 38cm Distance 16000uW/cm2 9000uW/cm2

Irradiated Area at 38cm Distance

(≥1200 uW/cm2)

¢250mm ¢200mm
Visible Light Illumination 10.89 lux 9.21 lux
Light Source 365nm UV-A LED
Number of Beads 5 4
Input Voltage

100-240V AC

50/60Hz

16.8V DC
Battery Specification - 8 3.7 V 2600mAhICR 18650
Battery Operating Time - 7 hours
Charging Time - 4 hours
Cooling System Built-in fan
Outline Dimension Lamp Head Diameter 120mm
Diameter of Light Inlet Window 88mm
Length 190mm
Handle Length 120mm

Weight

(including Battery)

1290g 1290g







































































Standard Configuration

  DG-100 DG-100D
Main Device 1 1
Power Line 1 -
Adapter - 1
Portable Backpack 1 1
Protective goggles 1 1
Operation Instruction 1 1
Certification 1 1
Warranty Card 1 1
Packing List 1 1



Aluminum Alloy Magnetic Particle Testing Handheld 365nmLED Cold Light UV Lamp 0Aluminum Alloy Magnetic Particle Testing Handheld 365nmLED Cold Light UV Lamp 1

Optional Configuration

Sealed Instrument Case 1
