Cross Hatch Cutter

Cross Hatch Cutter
Cross Hatch Cutter Cross Hatch Cutter Cross Hatch Cutter Cross Hatch Cutter Cross Hatch Cutter Cross Hatch Cutter Cross Hatch Cutter Cross Hatch Cutter Cross Hatch Cutter Cross Hatch Cutter Cross Hatch Cutter Cross Hatch Cutter Cross Hatch Cutter

Large Image :  Cross Hatch Cutter Get Best Price

Product Details:

Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Product Name: Cross Hatch Cutter Standard: :BS 3900 E6;BS/EN ISO 2409;ASTM D 3359;GB/T 9286
Number Of Square:: 25squares/100squares
High Light:

digital thickness gauge

,

coating thickness meter



Introduction:

2202 Cross Hatch Cutter is designed and manufactured according to ISO 2409-1992, GB/T9286-98, BS 3900 E6 and ASTM D3359standards.

This instrument is designed for assessing the resistance of paint or related coatings to separation from substrates when a right-angle lattice oattern is cut into the coating, penetrating through to the substrate.



Main Technical Parameters:

1.Six working side blades:When the blade edge is not sharp enough, users can loosen the boat type nut and top thrust screw to change blade.

2.Multi-cutting blades spacing:1mm/2mm/3mm

3.The number of square:25squares/100squares

Technical Specification:

Cutting Head No. Gap(mm) Blades Cutters Edges Coating Thickness(µm)
2202/1 1 6 8 0~60
2202/2 1 11 8 0~60
2202/3 1.5 6 8 0~60
2202/4 2 6 8 61~120
2202/6 3 6 8 121~250

Order Information :

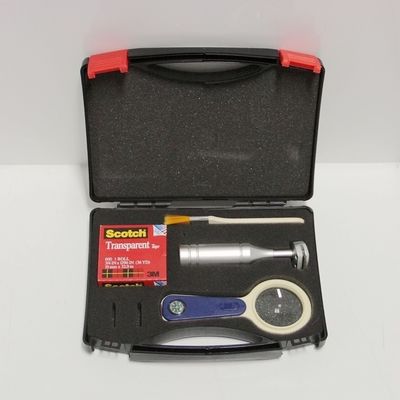

Standard Kit Contain
2202/1C Cross Hatch Cutter
+
Carry Case
+
Hexagonal Screwdriver
+
Brush
+
Magnifier
+
Tape
2202/2C
2202/3C
2202/4C
2202/6C
Simple Kit Contain
2202/1S Cross Hatch Cutter
+
Paper Box
+
Hexagonal Screwdriver
2202/2S
2202/3S
2202/4S

2202/6S
