Metal Hardness Testing Equipment Micro Hardness Testing Machine

Metal Hardness Testing Equipment Micro Hardness Testing Machine
Metal Hardness Testing Equipment Micro Hardness Testing Machine Metal Hardness Testing Equipment Micro Hardness Testing Machine

Large Image :  Metal Hardness Testing Equipment Micro Hardness Testing Machine Get Best Price

Product Details:

Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HV-1MDT

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Hardness Measuring Range: 8~2900HV Method Of Testing Force Applied: Automatic (loading,Dwelling , Unloading)
Turret Type: Automatic Test Microscope Magnification: 400X(Measuring),100X(observation)(Optional 50X、200X 、500X,Maximum 1000X)
X-Y Test Sets: Dimension:100*100mm Maximum Movement:25*25mm Data Output: Touch-screen Display, USB Disk Save
High Light:

micro vickers hardness tester

,

vickers hardness machine

HV-1MDT Advanced Micro Vickers Hardness Tester

Metal Hardness Testing Equipment Micro Hardness Testing Machine

(Touch Screen, Digital eyepiece, Built-in Printer, Auto-Turret)



Metal Hardness Testing Equipment Micro Hardness Testing Machine 0

Main Description:

1. The standard 8-speed force, from 10gf (0.098N) - 2kgf (19.6N), users can customize the test force;

2. 50X, 100X, 200X, 400X, 500X magnification optionally two kinds, up to 1000-fold;

3. Each indentation under magnification (any two lens) can be under significant number of measurements;

4. Based on the standard block different forces, the hardness value is automatically corrected;

5. The touch-screen interface, easy to operate, in any language version;

6. Enter, save more test samples and the operator and other information;

7. U disk data is saved directly to EXCEL format for easy editing and processing;

8. Using a modular design, easy maintenance;

9. External camera or upgrade to automatic hardness.

Application fields:
Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc.

Operation Interface:

Main Interface: Automatic correction under different time and test force:

Metal Hardness Testing Equipment Micro Hardness Testing Machine 1Metal Hardness Testing Equipment Micro Hardness Testing Machine 2

Technical Specifications:

Model HV-1MDT
Test force 10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N), 200gf (1.96N),300gf (2.94N),500gf(4.9N),1kgf (9.8N),2kgf (19.6N)
Standard Conformed to GBT4340.1,GBT4340.2,ASTM_E92
Min measuring unit 0.031µm
Conversion Scale HRA,HRB,HRC,HV,HK,HBW
Hardness measuring range 8~2900HV

method of testing

force applied

Automatic (loading,Dwelling , unloading)
Turret Type Automatic

Test microscope

magnification

400X(Measuring),100X(observation)(Optional 50X,200X ,500X,Maximum 1000X)
Test force dwell time 0~60s
X-Y test sets Dimension:100*100mm Maximum Movement:25*25mm
Data output Touch-screen display, USB disk save
Maximum specimen height 80mm
Distance from the center to the outer wall of the indenter 95mm
Power supply AC220V+5%,50-60Hz
Dimensions 405*290*480mm
Net Weight About 25Kg


Standard Accessories:

Item Quantity Item Quantity
Axle weight 1 Weight 6
Cross test sets 1 10X eyepiece test 1

Vickers hardness block

(high block, low block)

1 each USB disk 1
Level 1 Plastic dust cover 1
Screwdriver 2 Adjusting screw 4pcs
Power line 1 Spare fuse (2A) 2pcs
Product Manual 1 Product certification 1



Note:

Special accessories: special accessories according to user needs rationing custom, the price is another plan.

1. Knoop indenter: can measuring some high hardness materials.

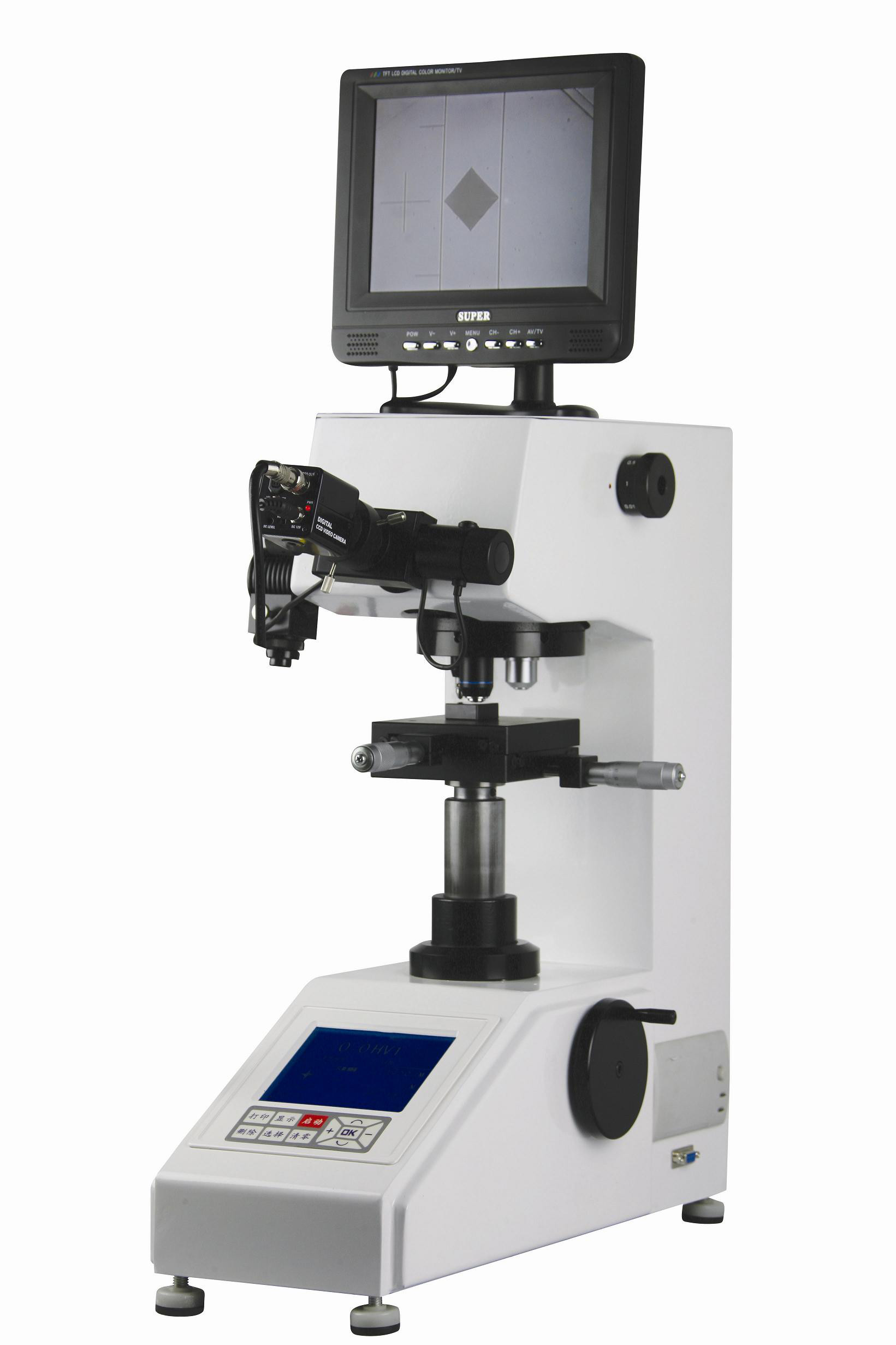

2, Provide 6.8 inch LCD screen can be equipped with, have tested indentation in the display on the screen and the measurement.(include 8.4 Inches-sized LCD,PS-2006 CCD Video Measuring Device, Video Connecting Cable, Power cable)

3.Can be equipped with image acquisition device, will impress clearly shown on a computer screen for

Metal Hardness Testing Equipment Micro Hardness Testing Machine 3

FAQ:

1 Standard accessories include Vickers Indenter?

Yes, the Micro vickers indenter included ( installed on the tester when delivered)

- 2 The system is Auto-Turret?

The model HV-1MD is equipped with Auto-Turret (Motorized Turret).

- 3 What is the Illumination system?

The illumination system is halogen lamp light source 6V,6W.

We used to adopt the cold light source, but after a period experience. The most customers prefer the halogen lamp.

- 4 In the Display, what can we have?

You can get the information, such as Hardness Value, D1,D2, Hardness conversion scale, Dwell time,intensity of light source,Test No.Test date, Test time.

You can find more information the enclosed instruction manual at the attachment.

- 5 What are the Execution Standard?

GB/T4340.1, GB/T4340.2, ISO 6507-1,ISO6507-2 and ASTM E384

- 6 Which hardness scales can we have in this equipment?





HV0.01, HV0.025,HV0.05,HV0.1, HV0.2, HV0.3, HV0.5,HV1

- 7 You tell that with the equipment come 2 micro Vickers hardness block (high and low). For what Vickers scale?

High value test block 720~780 HV1 Low value test block 420~480 HV0.2

- 8 You tell that magnification is 400X and 100X. It means one eyepiece 10X and objective 10X and 40X?

Yes, 1 pc of 10X eyepiece, and 1pc of objective 10X and 1pc of objective 40X.

- 9 The measurement is automatic?

Yes, Automatic for(Loading, Dwell, Unloading)

- 10 Is the LCD screen devices optional?

Yes, the LCD screen measuring device HV-TV is optional.

You can technic information of HV-TV LCD screen measuring device and the instruction manual.
