Product Details:

Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: TG5500D

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Display Type: 2.4QVGA(320×240)true Color OLED Screen,contrast 10000:1 Operating Principle: Adopts Single Delay Probe Ultrasonic Measuring Principle
Measuring Range: 0.2mm To 25.4mm(0.007874" To 1.00") Measuring Resolution: Selectable 0.001mm, 0.01mm Or 0.1mm (selectable 0.0001, 0.001", 0.01")
Power Requirements: 2 AA Size Batteries Operating Time: Greater Than 35 Hours
High Light:

portable ultrasonic thickness gauge

,

digital ultrasonic thickness gauge

TG5500D High Precision Ultrasonic Thickness  Gauge

High Precision thickness gauge calibration ultrasonic thickness testers



Thickness Measuring Gauge Thickness Gauge Calibration Ultrasonic Thickness Testers

Thickness Measuring Gauge Thickness Gauge Calibration Ultrasonic Thickness Testers 0

Usage

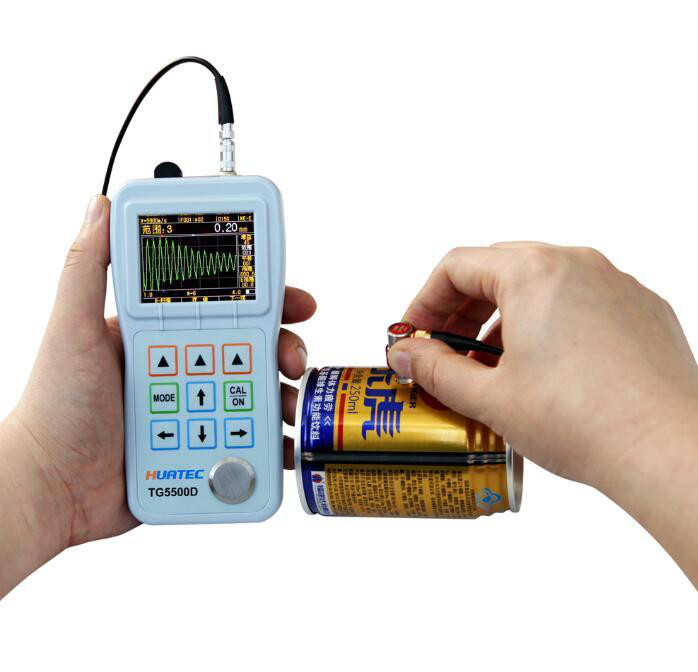

Widely used to measure the thickness of metal materials. Especially display its advantage for measuring the thin piece and high precision measuring. What’s more, it can also through the thin coating layer and paint layer, and also be used to measure ultra thin wall with paint layer like fire extinguisher.
Main Functions
1.Unique Multiple-wave check method, make use of multiple consecutive echos to verify. Meanwhile accomplish measuring of thin piece and high precision.
2.Unique AUTO measuring mode, can be selected automatically available upon the request of the thickness of the work piece, easy and simple to operate.
3.Parameter configuration interface is simple and easy to operate.
4.Adjustable Live A-scan waveform display, control of Gain, Blanking, Gate, Range and Delay etc.
5.Time-based B-scan function, displays a cross section of the test piece, for observing the underside outline of the piece.
6.Numerical view, display thickness values with big digit.
7.Thickness alarm: programmable Hi-Low alarm set point with dynamic change thickness value’s color.
8.Limit value mode: catching the minimum and maximum values when measuring.
9.Difference mode: getting the difference between the actual value and the normal value as well as the percentage of difference value and normal value.
10.Selectable units of mm and inch.
11.Optional resolution: X.XXX mm, X.XX mm and X.X mm; X.XXXX inch, X.XXX inch and X.XX inch.
12.Optional waveform style: outline mode or fill mode.
13.Optional rectification mode: RF+, RF-, full wave, half +, half -
14.Support adjustment of velocity and single-point calibration
15.Multi-languages Available: Chinese, English, German, French and Japanese, ahead of agreeing with the company.

16.Approx. battery life: 35 hours.

17. Measure the net thickness of the workpiece through the coating layer.

Specifications

Display Type 2.4QVGA(320×240)true color OLED screen,contrast 10000:1
Operating Principle Adopts single delay probe ultrasonic measuring principle
Measuring Range 0.2mm to 25.4mm(0.007874" to 1.00")
Measuring Resolution Selectable 0.001mm, 0.01mm or 0.1mm (selectable 0.0001, 0.001", 0.01")
Units Inch or Millimeter
Display Mode Normal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan
V-Path Correction Automatic
Update Rate Selectable 4Hz, 8Hz, 16Hz per second
Material Velocity Range 500-9999m/s,0.0179-0.3937in/u
Languages Chinese, English, French, Germany, Japanese
Alarm Settings Minimum and Maximum alarms. Dynamic waveform color change on alarm
Power Requirements 2 AA size batteries
Operating Time Greater than 35 hours
Instrument Shut-off Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Operating Temperature -10°C to +50°C (+10°F to +120°F); -20°C for special requirements
Size 153mm × 76mm ×37mm(H ×W ×D)
Weight 280g including batteries



Standard Configuration

NAME NUMBER
THICKNESS GAUGE 1
PROBE 1
COUPLANT BOTTLE 1
CARRYING CASE 1
OPERATING MANUAL 1
USB CABLE 1
SOFTWARE CD 1



Optional Configurations

HIGH-TEMPERATURE PROBE CAST IRON PROBE
SMALL PROBE MINI PROBE
PROBE CABLE STEPPED CALIBERATION BLOCK
RUBBER SHEATH



Thickness Measuring Gauge Thickness Gauge Calibration Ultrasonic Thickness Testers 1

Thickness Measuring Gauge Thickness Gauge Calibration Ultrasonic Thickness Testers 2Thickness Measuring Gauge Thickness Gauge Calibration Ultrasonic Thickness Testers 3

Thickness Measuring Gauge Thickness Gauge Calibration Ultrasonic Thickness Testers 4

Thickness Measuring Gauge Thickness Gauge Calibration Ultrasonic Thickness Testers 5Thickness Measuring Gauge Thickness Gauge Calibration Ultrasonic Thickness Testers 6



Thickness Measuring Gauge Thickness Gauge Calibration Ultrasonic Thickness Testers 7Thickness Measuring Gauge Thickness Gauge Calibration Ultrasonic Thickness Testers 8Thickness Measuring Gauge Thickness Gauge Calibration Ultrasonic Thickness Testers 9Thickness Measuring Gauge Thickness Gauge Calibration Ultrasonic Thickness Testers 10

Thickness Measuring Gauge Thickness Gauge Calibration Ultrasonic Thickness Testers 11Thickness Measuring Gauge Thickness Gauge Calibration Ultrasonic Thickness Testers 12Thickness Measuring Gauge Thickness Gauge Calibration Ultrasonic Thickness Testers 13

Material Inch/µS Sound Velocity M/s
Air 0.013 330
Alumina Oxide 0.390 9900
Beryllium 0.510 12900
Boron Carbide 0.430 11000
Brass 0.170 4300
Cadmium 0.110 2800
Copper 0.180 4700
Glass(crown) 0.210 5300
Glycerin 0.075 1900
Gold 0.130 3200
Ice 0.160 4000
Inconel 0.220 5700
Iron 0.230 5900
Iron (cast) 0.180 4600
Lead 0.085 2200
Magnesium 0.230 5800
Mercury 0.057 1400
Molybdenum 0.250 6300
Monel 0.210 5400
Neoprene 0.063 1600
Nickel 0.220 5600
Nylon , 6.6 0.100 2600
Oil (SAE 30) 0.067 1700
Platinum 0.130 3300
Plexiglass 0.110 1700
Polyethylene 0.070 1900
Polystyrene 0.0930 2400
Polyurethane 0.0700 1900
Quartz 0.230 5800
Silver 0.140 3600
Rubber, Butyl 0.070 1800
Steel, Mild 0.233 5900
Steel, Stainless 0.230 5800
Teflon 0.060 1400
Tin 0.130 3300
Titanium 0.240 6100
Tungsten 0.200 5200
Uranium 0.130 3400
Water 0.584 1480
Zinc 0.170 4200
