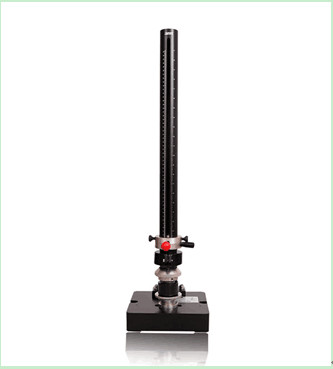

Impact Tester Evaluation Of Coatings Resistance By Simulating Actual Impactcondition

Impact Tester Evaluation Of Coatings Resistance By Simulating Actual Impactcondition
Impact Tester Evaluation Of Coatings Resistance By Simulating Actual Impactcondition Impact Tester Evaluation Of Coatings Resistance By Simulating Actual Impactcondition Impact Tester Evaluation Of Coatings Resistance By Simulating Actual Impactcondition Impact Tester Evaluation Of Coatings Resistance By Simulating Actual Impactcondition Impact Tester Evaluation Of Coatings Resistance By Simulating Actual Impactcondition

Large Image :  Impact Tester Evaluation Of Coatings Resistance By Simulating Actual Impactcondition Get Best Price

Product Details:

Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: 1601 series

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
High Light:

digital thickness gauge

,

coating thickness meter

Impact Tester

Product Introduction:

Impact Tester is used to make the reliable evaluation of coatings resistance by simulating actual impactcondition. A free falling object impacts coated surface and lead to craze in the substrate, test the destroy degree of crazing.

Impact Tester Evaluation Of Coatings Resistance By Simulating Actual Impactcondition 0Impact Tester Evaluation Of Coatings Resistance By Simulating Actual Impactcondition 1Impact Tester Evaluation Of Coatings Resistance By Simulating Actual Impactcondition 2Impact Tester Evaluation Of Coatings Resistance By Simulating Actual Impactcondition 3

Introduction:

Impact Tester is used to make the reliable evaluation of coatings resistance by simulating actual impact condition.A free falling object impacts coated surface and lead to craze in the substrate,test the destroy degree of crazing.
Most of coating in protective field must be carried out the impact test, such as painting, plating, plastic, varnish, resin, compound, coil coating, sheet and metal material etc.



Instrument including:

◆Sturdy substrate to connect tube frame
◆Different falling weight
◆Clamp ring to adjust the falling weight
◆Up and down
◆A graduated tube



Technical Specification:

1601/1 Impact Tester
◆Comply with ASTM D2794
◆Falling weight: 8.9N (2 Lbs)
◆Indenter diameter :15.9 mm
◆Die diameter :16.3 mm
◆Tuber height: 63.6 cm

1601/2 Impact Tester
◆Comply with ASTM D2794,BS6496
◆Falling weight: 17.9 N (4 Lbs)
◆Indenter diameter: 15.9 mm
◆Die diameter: 16.3 mm
◆Tuber height: 101.7cm

1601/3 Impact Tester
◆Comply with BS3900, DIN55669, ISO6272
◆Falling mass:1 kg
◆Indenter diameter:20 mm
◆Die diameter:27 mm
◆Tuber height:100 cm

1601/5 Impact Tester
◆Comply with GB/T 1732
◆Impact height:1 m
◆Tube division scale:1 cm
◆Falling weight:1 kg
◆Indenter dia:8 mm
◆Die diameter:15 mm
◆Impact depth: 2 mm

1601/4 Impact Tester
◆Comply with GB/T 1732
◆Impact height:50 cm
◆Tube division scale :1 cm
◆Falling mass:1 kg
◆Indenter dia:8 mm
◆Die diameter:15 mm
◆Impact depth: 2 mm

Impact Tester Evaluation Of Coatings Resistance By Simulating Actual Impactcondition 4

Accessories of 1601/2

Order Information:

Order No. Item Standard Height(cm)
1601/1 Impact Tester ASTM D 2794 63.6
1601/2 Impact Tester ASTM D2794,BS 6496 101.7
1601/3 Impact Tester BS3900,DIN55669,ISO6272 100
1601/4 Impact Tester GB/T 1732 50
1601/5 Impact Tester GB/T 1732 100

Other indenter and die are available upon request.
