Precision Intelligent Glossmeter From Matt To High Gloss Measurements

Precision Intelligent Glossmeter From Matt To High Gloss Measurements
Precision Intelligent Glossmeter From Matt To High Gloss Measurements Precision Intelligent Glossmeter From Matt To High Gloss Measurements Precision Intelligent Glossmeter From Matt To High Gloss Measurements Precision Intelligent Glossmeter From Matt To High Gloss Measurements

Large Image :  Precision Intelligent Glossmeter From Matt To High Gloss Measurements Get Best Price

Product Details:

Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: 1503

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Angle: 20°, 60°, 85° Measurement Range: 0-2000GU
Repeatability: ±0.2(0-199.9GU), ±0.2%(200-2000GU) Reproducibility: ±0.5(0-199.9GU), ±0.5%(200-2000GU)
Precision: 1GU Measuring Area(mm): 10x10 (20°), 9x15(60°), 5x38(85°)
Display Resolution: 320 X 240 Control: Touch Screen With One Key Measurement
Data Port: USB & Blue Tooth Basic Mode: 3000 Batches
Statistics Mode: 3000 Batches Continuous Mode: 1000 Batches
High Light:

gloss measurement

,

digital gloss

Intelligent Glossmeter

Product Introduction: Wide range of applications from matt to high gloss measurements, with advanced touch screen technology and ideal for production and laboratory.

Precision Intelligent Glossmeter From Matt To High Gloss Measurements 0Precision Intelligent Glossmeter From Matt To High Gloss Measurements 1Precision Intelligent Glossmeter From Matt To High Gloss Measurements 2Precision Intelligent Glossmeter From Matt To High Gloss Measurements 3

Introduction:

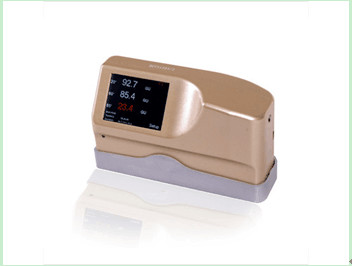

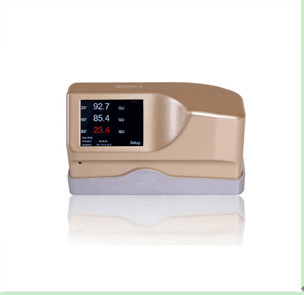

This portable intelligent glossmeter has a wide range of applications from matt to high gloss measurements, with advanced touch screen technology and ideal for production and laboratory.
Samples can be measured separately at each angle or at 2 or 3 angles simultaneously and effectively processed using the powerful built-in software.

Technical Specification:
◆Angle: 20°, 60°, 85°
◆Measurement range: 0-2000GU
◆Repeatability: ±0.2(0-199.9GU), ±0.2%(200-2000GU);
◆Reproducibility: ±0.5(0-199.9GU), ±0.5%(200-2000GU);
◆Precision: 1GU
◆Measuring area(mm): 10x10 (20°), 9x15(60°), 5x38(85°)
◆Display resolution: 320 x 240
◆Control: Touch screen with one key measurement
◆Memory: Basic mode: 3000 batches
Statistics mode: 3000 batches
Continuous mode: 1000 batches
◆Data port: USB & blue tooth

Features:
◆Automatic calibration integrated in protective holder.

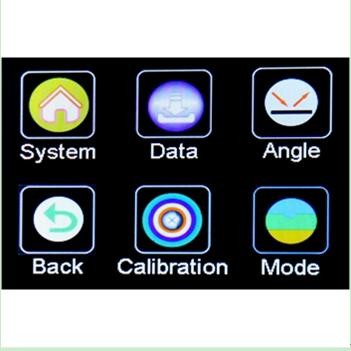

◆Touch screen with one button measurement
◆Display reading, statistics and calibration procedure on colorful touch screen
◆One second to complete automatic calibration
◆Memory up to 16000 x 3 readings

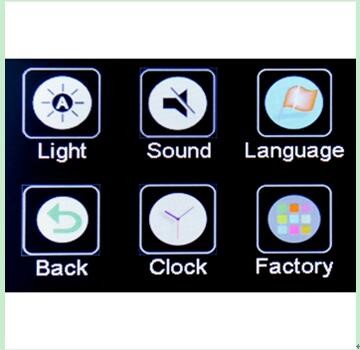

◆Multi- languages menu available
◆Built-in battery with USB port
◆Transfer data to PC via USB cable, more extended functions
◆Blue tooth connection
◆Real-time to view measurement data via mobile phone

Standard:
ISO 2813, ASTM D523, DIN 67530

Order Information:
1503 Intelligent Tri-Glossmeter ( 20°/60°/85°)
1503/1 Intelligent Glossmeter (20°)
1503/2 Intelligent Glossmeter (60°)
1503/3 Intelligent Glossmeter (85°)
