Intelligent Oven Loggermaster , Oven Temperature Logger Easy-To-Use

I'm Online Chat Now
China HUATEC GROUP CORPORATION certification
China HUATEC GROUP CORPORATION certification
huatec hardness tester, very good quality,we are very satisfied with the portable hardness tester RHL-50. Kumaren Govender Sotuth Africa

—— Kumaren Govender

I like the service, very quick response, professional work. Aret Turkey

—— Aret Kaya

wide range of NDT products, we can get all in huatec group. We prefer to buy from them. Rudolf Shteinman Russia

—— Rudolf Shteinman

we are reselling HUATEC ut flaw detector FD201B, very good quality, good price. easy software updating after purchasing. Mansoor India

—— Mansoor

bulk sell of huatec coating thickness meter TG-8828, good quality, good service, fast delivery. Yilmaz Demir Turkey

—— Yilmaz Demir

Intelligent Oven Loggermaster , Oven Temperature Logger Easy-To-Use

Intelligent Oven Loggermaster , Oven Temperature Logger  Easy-To-Use
Intelligent Oven Loggermaster , Oven Temperature Logger  Easy-To-Use Intelligent Oven Loggermaster , Oven Temperature Logger  Easy-To-Use Intelligent Oven Loggermaster , Oven Temperature Logger  Easy-To-Use Intelligent Oven Loggermaster , Oven Temperature Logger  Easy-To-Use Intelligent Oven Loggermaster , Oven Temperature Logger  Easy-To-Use

Large Image :  Intelligent Oven Loggermaster , Oven Temperature Logger Easy-To-Use Get Best Price

Product Details:

Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: PL series

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Range: 0℃-1200℃ Accuracy: ±0.3℃
Resolution: 0.1℃ Probe Type: K Type
Channel: 6 Operation Temperature: 0-60℃
Interval: From 1 Second To 1 Hour Interface: USB
Batteries: 3×1.5AA Type Battery Life: 1200 Hours Continuous Use Or 10000 Hours Stand-by
Size: 85×105×30 Mm
High Light:

oating thickness tester

,

coating thickness meter

Oven Loggermaster

Product Introduction:

Oven Loggermaster is the latest generation of Oven Temperature Logger for robust comprehensive,intelligent and easy-to-use, which used to measure and store the temperature profiles of both the sample and the oven during the cure process.

Intelligent Oven Loggermaster , Oven Temperature Logger  Easy-To-Use 0Intelligent Oven Loggermaster , Oven Temperature Logger  Easy-To-Use 1Intelligent Oven Loggermaster , Oven Temperature Logger  Easy-To-Use 2Intelligent Oven Loggermaster , Oven Temperature Logger  Easy-To-Use 3

Introduction:

Oven Loggermaster is the latest generation of Oven Temperature Logger for robust comprehensive,intelligent and easy-to-use, which used to measure and store the temperature profiles of both the sample and the oven during the cure process. The record data can be downloaded to the loggermaster software for a comprehensive evaluation of the oven conditions.

Technical Specifications:

◆Range: 0℃-1200℃
◆Accuracy:±0.3℃
◆Resolution: 0.1℃
◆Probe type:K type
◆Channel:6
◆Operation temperature:0-60℃
◆Interval:from 1 second to 1 hour
◆Interface: USB
◆Batteries: 3×1.5AA type
◆Battery life: 1200 hours continuous use or 10000 hours stand-by
◆Size :85×105×30 mm

Features:

◆Measures up to 6 channels in one time
◆Long battery life
◆Large screen for numerical or graphical display of data
◆USB interface provides easy data transfer for evaluation
◆High quality thermocouple type K probes
◆Measure temperature both in horizontal and vertical as the component is passed through the cure process
◆Start and stop logging at a pre-set temperature
◆Memory stores up to 260,000 readings

Intelligent Oven Loggermaster , Oven Temperature Logger  Easy-To-Use 4

Flexible Evaluation of Data:

◆Quick display - the logger display shows the maximum temperature and data percentage or graphic representation for each probe.
◆Extensive analysis - download the data to PC, comprehensive calculations and full customized reports are easily got as each system is supplied with the powerful analysis software.

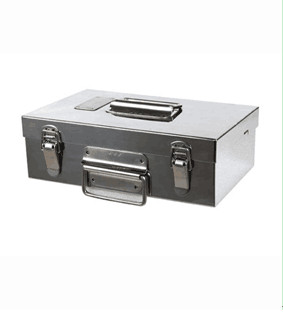

Thermal Insulation Systems:

◆All 2301 recorder is equipped with a high quality thermal insulation system.
◆The insulation box is equipped with advanced stainless steel shell,which can be customized according to the demand for other purposes.
◆Advanced heat absorber

Probe type:

A wide range of K-Type temperature probes is available with 1.5m , 3m or 6m cable length.

Order Information of Probe:

Order No. Cable length(m) Cable type Application Probe type Max.T.(℃)
PL8001/02/03 1.5/3.0/6.0 teflon air clamp 300
PL8004/05/06 1.5/3.0/6.0 teflon air magnetic 300
PL8007/08/09 1.5/3.0/6.0 teflon surface clamp 300
PL8010/11/12 1.5/3.0/6.0 teflon surface magnetic 300
PL8013/14/15 1.5/3.0/6.0 teflon universal ring Ø6mm 300
PL8016/17/18 1.5/3.0/6.0 teflon universal wire 300
PL8019/20 1.5/3.0 ss braided lead surface magnetic 480
PL8021/22 1.5/3.0 ss braided lead surface clamp 480
PL8023/24 1.5/3.0 ss braided lead universal ring Ø6mm 480
PL8025/26/27 1.5/3.0 /6.0 ss braided lead air clamp 480
PL8028/29/30 1.5/3.0/6.0 Inconel bendable HT universal ring Ø6mm 1000

Order Information:

2301 Oven Loggermaster

300℃ Thermal Insulation System 500℃ Thermal Insulation System

2302 Insulation Box

(Insulation Gasket Included)

2303 Insulation Box

(Insulation Gasket Included)

2302/3 Heat Absorber 2303/3 Heat Absorber
2302/6 Insulation Gasket 2303/6 Insulation Gasket
