Detailed Product Description

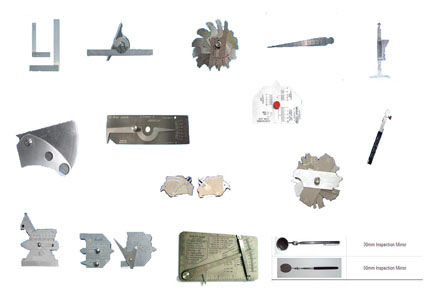

WELDING GAUGE SERIES

Wide-seat square Taper gauge
spec:63*40-630*400mm

180°malleable iron square MG-11(metric system)

G.A.L. HI-LO Welding Gauge Measures internal Alignments G.A.L ECONOMY Single Purpose HI-LO Welding Gauge

Automatic Weld Size Weld Gauge FAN-SHAPED Gauge

BITING EDGE GAUGE

MG-8 Cam Type Weld Gauge MG-11 Cam Type Weld Gauge

Measurement Items	Range	Parameters	Tools
Width	0—20mm	0.2	0.02 vernier caliper
Height	0—12mm		Plug gauge, tabulate gauge
Width of Fillet Weld	0—20mm		Plug gauge, tabulate gauge
Movable Bevel Angle	20°, 30°, 40°, 50°, 60°, 70°, 80°	±2°	±30' angle gauge
Single-side Bevel Angle	117.5—122.5	±30'	±10″universal gauge
Bevel Angle	45°, 55°, 60°, 65°	±30'	±10″universal gauge
Gap Size	0.5-3.5mm	0.1	0.02 vernier caliper

Welding Gauge Model HJ30

The gauge consists of main scale, slide gauge and bevel gauge and is specially used for the measurement of the bevel angle of welding, the width and height of weld seam, and the weld gap.

It is made of stainless steel and is characterized by portable and compact structure, easy operation, wide application and accurate measurement

Welding Gauge ModelHJC60/40

The gauge consists of main scale, height gauge, undercut depthgauge and multiple-purpose gauge and is specially used for the measurement of the bevel angle, height, width, gap and undercut depth of weldment, suitable for the detection of boilers, bridges, ships, pressure vessels and oil pipes.

It is made of stainless steel and is characterized by portable and compact structure, easy operation, wide application.

Welding Gauge ModelHJC60

Measurement Items		Range	Tolerance of Indicating Value
Height	Surface Height	0—15	0.2
	Height of Fillet Weld		0.2
	Thickness of Fillet Weld		0.2
Width		0—60	0.3
Undercut Depth of Welding Seam		0—5	0.1
Bevel Angle of Welding		80—160	30
Gap Size		0.5—6	0.1

Welding Gauge ModelHJC40

Measurement Items		Range	Tolerance of Indicating Value
Height	Surface Height		0.2
	Height of Fillet Weld	0—12	0.2
	Thickness of Fillet Weld	0—15	0.2
Width		0—40	0.3
Undercut Depth of Welding Seam		0—5	0.1
Bevel Angle of Welding		≤150	30
Gap Size		0.5—5	0.1

Pipe pit gauge

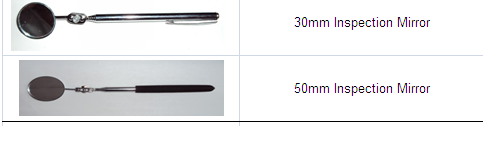

Inspection mirror

Tag : Welding Gauge, AWS weld gauge, pipe pit gauge
