Detailed Product Description
TECHNICAL DATA
Display 128X64 Pixel LCD with backlight
Measuring range (in two function modes of Standard mode and through coating mode) Standard mode 0.8 mm-- 300.0 mm in steel depending on the probe
Special request can reach measuring range up to 500mm
Through coating mode 2.5 mm – 18.0 mm (Probe PT-08 and PT-12 )
Tolerance +/-0.05 mm in steel
Display resolution 0.01 mm( Less than 100.0 mm )
0.1mm( over 100 mm )
Built-in standard block 4.00 mm
Memory 500 datas in 5 groups, memory does not lose after powering off
Velocity range 1000-9999 m/s
Power 2 pcs 1.2 V AAA batteries
Outside dimension 149X73X32 mm
Net Weight 160 g
FEATURES
- Automatic self-calibration
- Couplant indicator
- Automatic power off in 5 minutes and manual power off function
- High-low limit alarm
- LCD brightness adjustable
- Through coating capability
- Low battery indicator
- Two points calibration
- Metric/imperial optional
- Dataview for PC communication
STANDARD DELIVERY

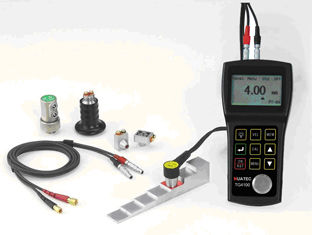

TG4100 main unit with through coating mode
Hard carrying case
Couplant bottle
Standard 8 mm, 5 MHzprobe PT-08 with cable (through coating mode)
Dataview CD and communication cable
OPTIONAL ACCESSORIES
4 stepssteel test block
7 stepsmetrics steel test block
5 MHz, 4 mm contact probe
10 MHz, 4 mm, contact probe
5 MHz high temp. probe
Probe cables
Water proof housing
PROBE OPTIONAL
Probe model Frequency Contact area Testing Range (steel) Contact Temp.
Cast iron probe ZT-12 2MHz 16.2mm 4.0-300.0mm --10--60℃
Standard probe PT-12 5MHz 12mm 1.0-200.0mm --10--60℃
Standard probe PT-08 5MHz 10mm 0.8-100.0mm --10--60℃
Small probe PT-06 7.5MHz 7.6mm 0.8-30.0mm --10--60℃
Small probe PT-04 10MHz 5mm 0.8-20.0mm --10--60℃
High temp probe GT-12 5MHz 14mm 4.0-80.0mm up to 300℃
