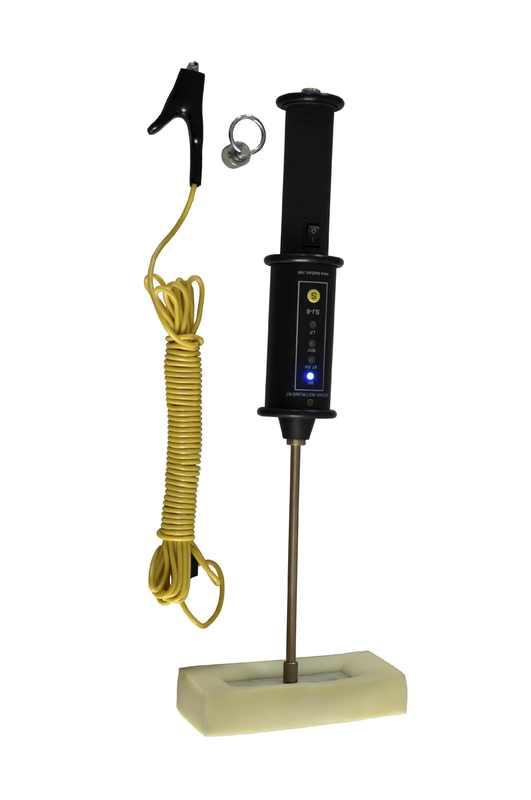

Porosity Holiday Detectors HD-104

  Porosity Holiday Detector HD-104

Features:

• Supplied ready to use
• Automatic sensitivity calibration and voltage checks
• Low battery indicator
• Visual and audible alarms
• Integral and separate wand functionality
• A wide range of fully interchangeable wand accessories
• Easy release snag proof cables
• Large standard sponge
• Optional inspection kit for all your requirements is available.

Technical specifications
Detector range           9V ——300µm
                                      67.5V—500µm
                                      90V——500µm
Sensitivity                    9V——90KΩ+5%
                                      67.5V—125KΩ+5%
                                      90V——400KΩ+5%
Accuracy of voltage    +5%
Battery                          Li-pol rechargeble battery 11.1V/1100mA
Power                           ≤0.5W
Weight main unit        500g
Size                               290×53×53mm
Voltage indication       LED indication for each voltage
Batterycharging          12VDC charger
Sponge size                170×70×30mm
Detecting rod length  195mm
Earth wire length         4m

Standard delivery
HD-104 pinhole main unit              1pc
Standard wand and flat sponge　1pc
Earth wire                                           1pc
Charger                                              1pc
Carrying case                                    1poc
Manual                                                1pc
Warranty card　　      　  　            1pc
