Handheld Contamination Monitor HCM-100 Of X-Ray Flaw Detector
1pcs
MOQ
Handheld Contamination Monitor HCM-100 Of X-Ray Flaw Detector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HCM-100
High Light:

welding x ray machine

,

industrial x ray machine

Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Specifications
Product Description

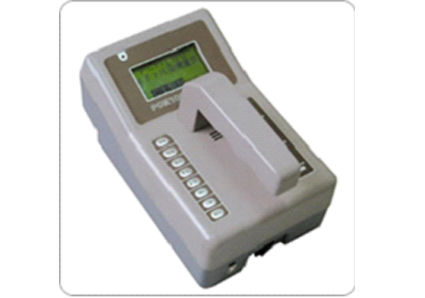

Handheld α β γ contamination monitor HCM-100 can make measurement of radioactive surface contamination, provides high sensitivity for three, alpha, beta and gamma radiation. The instrument is therefore ideally suited for the measure ment of photon emitting radio nuclides, widely used in nuclear medicine as well as in other laboratories environments.It can test gross count, counting rate, nuclide activity, nuclide concentrationetc.

Function

  • α β γ contamination
  • cps, Bq, Bq/cm2 optional
  • Three kinds of testing mode, single, continuous and smoothness
  • Continuous adjustment of alarm value, sound and light alarm
  • Data memory, record of stored memory, real time clock
  • Fault display
  • Lithiumrecharble battery
  • USB port
  • Lattice LCD
  • Backlight
  • Can write scale factor, area, smoothness factor
  • Continuous adjustment of time clock
  • 8 keys, controlling of measurement, backlight, alarm, 4 multi-function keys.
  • Low voltage display
  • Alarm of outrange, alarm of GM tube block

Techincal features

  • Detector:end window counter tube 3pcs
  • Sensitive area:45cm2 (15 cm2×3)
  • Radiation type:α, β, γ
  • Measuring type:gross count, cps, degree of activityBq, Bq/cm2
  • Measuring rage:0.1-105 cps, 0.1-104 Bq, 0.1-103 Bq/cm2
  • Lower limit of energy: α 2.5 MeV     β 30 keV    γ 5 keV

Efficiency:
  ≥40%(2π)according to 90Sr
  ≥40%(2π)according to 14C, 239Pu
  ≥40%(2π)according to 2 04T
  ≥30%(2π)according to 239Pu

  • 9V recharble battery, working time >100 hours
  • Working temperature: 0 - 45℃
  • Humidity: 90%
  • Volume:226 mm×140 mm×88 mm
  • Weight:1.8 kg
