Detailed Product Description
The Brinell hardness testing creates the largest indentation comparing all other hardness testing methods. It is able to reflect the comprehensive features of the material, and is unaffected by the microstructure and inhomogeneous of the specimen. So it with high precision and widely used in industry such as metallurgy, forging, casting, unhardened steel and nonferrous metals, as well as in the laboratories, universities , and scientific research institutes.
HBE-3000ETester conforms to:
-
ISO6506 Metallic Materials-Brinell Hardness Test
-
-
ASTM E-10 Test Method for Brinell Hardness of Metallic Materials
Specification:
-
Innovative closed-loop technology. The tester incorporates the latest load cell technology. The test load is applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit. The result is highly accurate measurements at all test loads up to 0.5%. The common load overshoot or undershoot as known from traditional dead weight, or open-loop, systems is eliminated. The absence of mechanical weights not only eliminates friction problems but also makes the equipment less sensitive to misalignments caused by vibrations.
-
The whole weight of the tester is 50% less than the traditional dead weights type tester.
-
-
Test load selection by keyboard and LCD screen. No need of handling heavy weights or cleaning the messy oil.
-
Fully automatic test cycles. The hardness Tester features a fully automatic test cycle, load application, holding, unloading, is performed fully automaticly. This greatly improves reproducibility of test results since operator influence is eliminated.
-

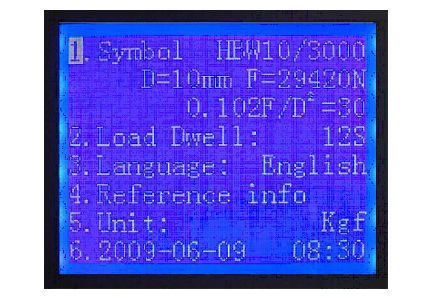

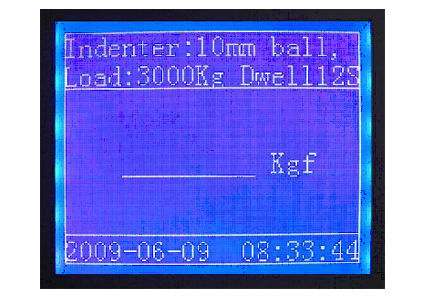

Selectable dwell times by screen. The indenter, load, and other test informations are showing clearly on the large LCD screen.
-

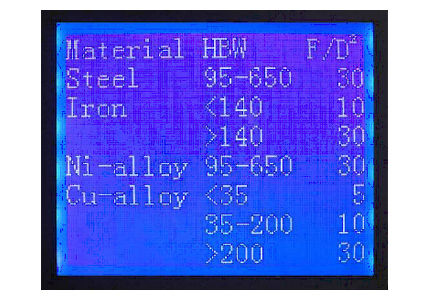

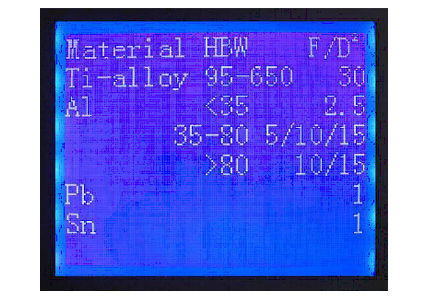

The directions for 0.102F/D2 ratios selecting according to the materials and hardness range can be showing on the screen.
-
Equipped with a 20X optical microscope to measure the diameter of Brinell indention. It is an economic scheme for Brinell testing.
-
Brinell Hardness Caculator (BHC) make the hardness value caculation more easier and convenient.
Technical data:
Loads:3000kgf (29400N), 1500Kgf (14700N), 1000Kgf (9800N), 750Kgf(7355N),
500Kgf (4900N), 250Kgf (2452N), 187.5Kgf (1839N), 125Kgf (1226N),
100Kgf (980N), 62.5Kgf(612.9N)
Load dwell duration: 2s～99s, can be set and stored
Tungsten Carbide Ball indenter: 10mm,
Measuring range: 3.18HBW~658HBW
Magnification of the microscope: 20X
Resolution capability of the microscope: 0.005mm
Accuracy of Brinell Hardness Value:
Hardness Range(HBW) Error (％) Repeatability(％)
≤ 125 ± 3.0 ≤3.0
125＜HBW≤225 ± 2.5 ≤2.5
＞ 225 ±2.0 ≤2.0
Max measurable height: 230 mm
Max measurable depth: 140 mm
Dimensions: 530mm×260mm×750mm
Power supply: 220/110 V, 50/60 Hz, 4A
Weight: 120kg
Standard blocks: 125-350HBW10/3000, 125-350HBW10/1000
Standard configuration
Host machine 1
Standard block 125-350HBW10/3000 1
Standard block 125-350HBW10/1000 1
Ф10mm Tungsten Carbide Ball indenter 1
Mounting screws for indenter 1
Screwdriver for indenter mounting 1
Flat anvil 1
“V ”shape anvil 1
20X microscope 1
Power supply wire 1
Dust cover 1
Optional accessories:
Standard blocks of other value
Ф5mm Tungsten Carbide Ball indenter
Ф2.5mm Tungsten Carbide Ball indenter
Ф10mm Tungsten Carbide Ball
Ф5mm Tungsten Carbide Ball
Ф2.5mm Tungsten Carbide Ball
