Detailed Product Description
Features:
• Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on.
• Compact size, small weight, easy handling
• Prompt testing of vibration on the workshop machines
• For quick checking of unbalance misalignment, bearings and gears
• Guard against mechanical malfunction
• Holding tested value for 40 seconds
• Automatic switch off after 40 seconds

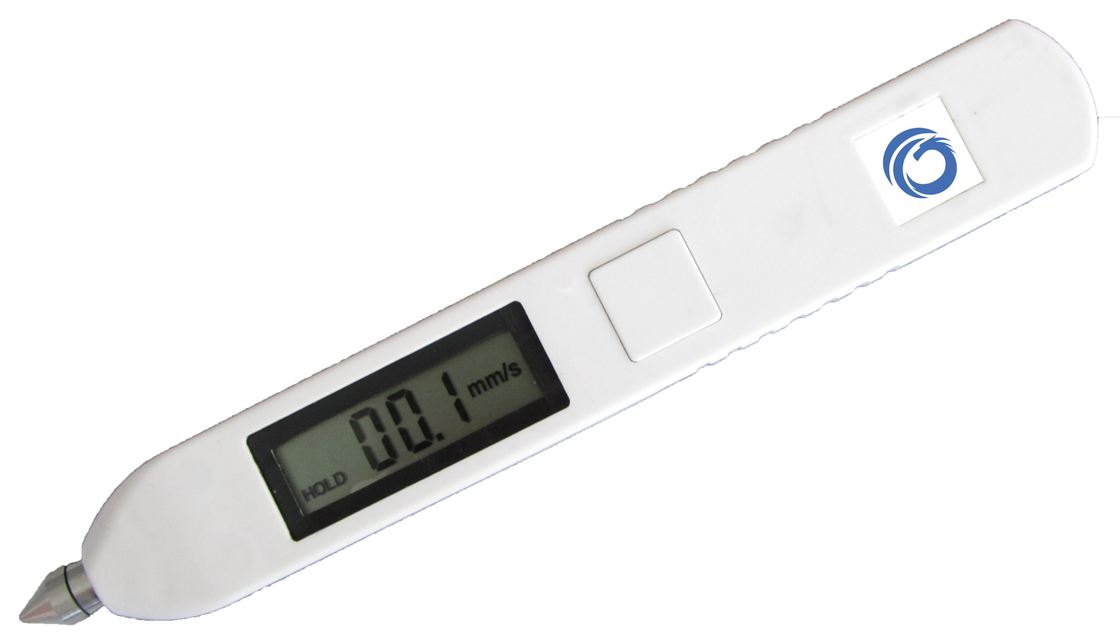

• HG-6400 is used for testing of velocity
|
Parameters
|
Velocity
|
|
Testing range
|
Velocity:0.01mm/s-199.9mm/s(RMS)
|
|
Frequency range
|
Velocity:10Hz~1kHz
|
|
Accuracy
|
±5%
|
|
Display
|
31/2 digits LCD
|
|
Power supply
|
Two button batteries(LR44 or SR44)
|
|
Batterycapacity
|
Approx 4.5 hours working continuously
|
|
Operating Temperature
|
0℃~40℃
|
|
Humidity
|
＜85%
|
|
Dimension
|
150mm*22*18mm
|
|
Dimension Weight
|
55g(including batteries)
|
Standard delivery
• Main unit
• Battery
• Protection pocket
• Certificate
• Instruction manual
• Warranty card
