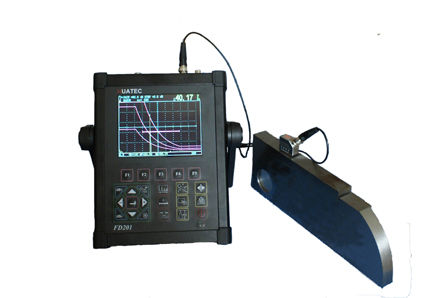

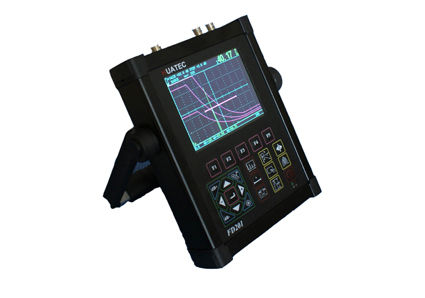

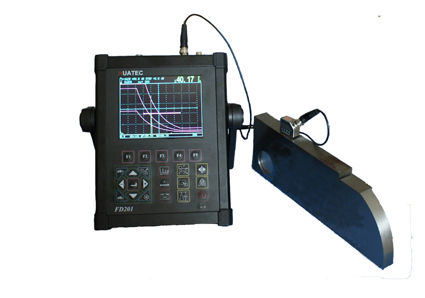

Large Image : Digital Ultrasonic Flaw Detector FD201, UT, ultrasonic testing equipment 10 hours working

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Model Number:	FD201

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Carton
Delivery Time:	3-7 days
Payment Terms:	TT

Detailed Product Description

Digital Ultrasonic Flaw Detector FD201, UT, flaw detector, ultrasonic testing equipment, ndt, ultrasonic detector

Production Info. :

·Automated calibration Automated gain
·Automated make video of test process and play
·DAC AVG & B scan, AWS function, 6dB DAC
·High-speed capture and very low noise
·Solid metal housing (IP65)
·High contrast viewing of the waveform from bright

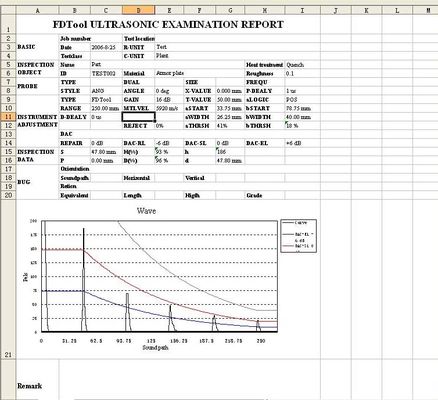

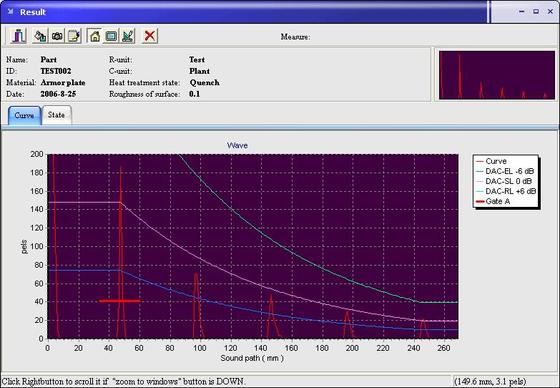

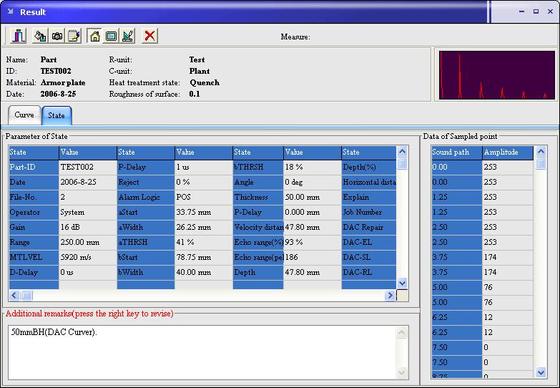

·Powerful pc software and reports can be export to excel

Features :

·         Automated calibration of transducer Zero Offset and/or Velocity ；
·         Automated gain, Peak Hold and Peak Memory；
·         Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, ф)；
·         Automated switch three staff gauge ((Depth d, level p, distance s)；
·         100 independence setup, any criterion can be input freely, we can work in the scene without test block；
·         Big memory of 300 A graph and 30000 thickness value.
·         B scan；
·         RS232 port/ USB, communication with pc is easy；
·         The embeded software can be online updated；
·         Li battery, continue working time up to 10 hours;
·         Other assistant function;
·         Display freeze;
·         Automated echo degree;
·         Angles and K-value;
·         Lock and unlock function of system parameters;
·         Dormancy and screen savers;
·         Electronic clock calendar ;
·         Two gates setting and alarm indication;
·         High-speed capture and very low noise;
·         DAC, AVG, B Scan ; Solid metal housing (IP65);
·         Automated make video of test process and play;
·         Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles;

Main Technical Index:

Title	Parameter	Title	Parameter
Measuring Range(mm)	2.5 ～ 10000	Measurement Mode	Single, Dual, Thru
Vertical Linearity Error	≤3%	Reject	0~80%
Horizontal Linearity Error	≤0.1%	Pulse Displacement(μs)	-20 ～ +3400
Sensitivity Leavings	60dB	Zero(μs)	0.0 ～ 99.99
Pulse Displacement	32dB	Port Type	BNC
Resolving Power	≥40	Operating Temperature (℃)	-20～50
Frequency Range(MHz)	0.5 ～ 20	H×W×D(mm)	240×180×50
Gain(dB)	0 ～ 110	Weight(kg)	1.8
Material Velocity(m/s)	1000 ～ 9999

Standard Delivery:

Digital Ultrasonic Flaw Detector Main unit

2.5MHZ-ф20 straight probe

4MHZ-8x9mm, 60degree angle probe

4A/9Vpower adapter

Probe connection cable (BNC to Lemo 00)

Probe connection cable (BNC to Lemo 01)

Instruction manual

Carrying case

Additional Accessories:

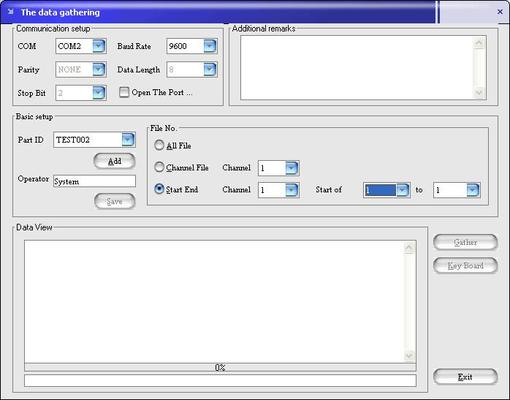

Data managing software for digital ultrasonic flaw detector

Data managing cables RS232 for digtial ultrasonic flaw detector

Straight probe (5MHZ-ф20)

Straight probe (2.5MHZ-ф20)

Straight probe (2.25MHZ-ф20)

Straight probe (1MHZ-ф20)

Angle probe (4MHZ-45degree, 8*9mm)

Angle probe (4MHZ-60degree, 8*9mm)

Angle probe (4MHZ-70degree, 8*9mm)

Angle probe (4MHZ-80degree, 8*9mm)

Angle probe (2MHZ-45degree, 8*9mm)

Angle probe (2MHZ-60degree, 8*9mm)

Angle probe (2MHZ-70degree, 8*9mm)

Angle probe (2MHZ-80degree, 8*9mm)

Probe T/R (5MHz-ф20mm, focus 15mm)

Probe T/R (2.5MHz-ф20mm, focus 15mm)

Connection cable to probe (BNC-BNC)

Connection cable to probe (BNC-Lemo 01)

Connection cable to probe (BNC-Lemo 00)

Connection cable to probe Lemo 01-Lemo 00)

Lithium ion battery

Power adapter (4A/9V)

Power Cable

Leather case
