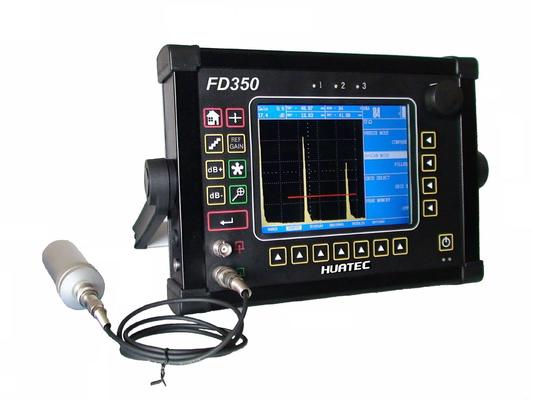

Large Image : Digital portable DAC, AVG curves Ultrasonic Flaw Detector / UT flaw detector USN60 FD350

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE, ISO
Model Number:	FD350

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Carton
Delivery Time:	3-7 days
Payment Terms:	TT
Supply Ability:	100 per month

Detailed Product Description

Digital Portable Ultrasonic Flaw Detector, ultrasonic testing equopment, UT flaw detector, ultrasonic detector, USN60 FD350

Product Info:
·Automated calibration Automated gain
·Automated make video of test process and play
·AWS D1.1, DAC/TCG, JIS DAC/TCG, AVG, DGS, A scan & B scan
·High-speed capture and very low noise
·Solid metal housing (IP65)
·High contrast viewing of the waveform from bright
·Powerful pc software and reports can be export to excel
·Small size, light weigh model

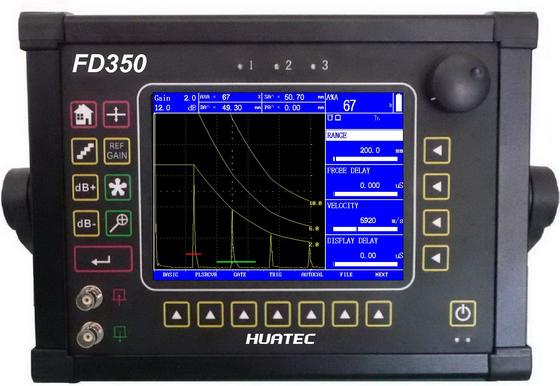

DAC DGS TGS

B Scan B Scan Thickness LEG ECHO

LEG GRID REF RF

Main Technical Index:

FUNCTIONS	PARAMETERS
Frequency	0.2 – 20 MHz
Detection range	0 - 10000 mm
Sound velocity	100 – 20000 m/s
Working methods	Pulse echo, dual, and thru-transmission
Pulse Shift	-5 to 3400 μs in steel (dependent on range)
Zero point of the probe	0 – 100 μs
Gain adjustment	(0-110) dB, Step:0.2, 0.5, 1.0, 2.0, 6.0, 12.0, user definable(0-24), and locked
Vertical linear error	≤3%
Horizontal linear error	≤0.1%
Dynamic range	≥40dB
Sensitivity surplus	≥60dB (200mmdepth , Ф2 flat- bottomed hole )
Communications	Connect with computer through RS232 or USB
The average electric yawp	≤20%
Color TFT LCD	5.25”x 3.875” (133 x 98 mm), 640 x 480 pixels VGA, color
Gate alarm	Wave-entering gate / wave-losing gate sound alarm, width, height, location, continuous-tuning
Time of battery working	7 hours
Temperature of working	-10°C-60°C
Power	220VAC, 110VDC
Appearance size	11.9”W x 9.9” H x 2” D (302 x 251 x 51 mm)
Net weight	5.5 lbs. (2.5 kg) Li-Ion Battery; 4.8 lbs. (2.2 kg) without battery

Standard Delivery of Digital Portable Ultrasonic Flaw Detector USN60 FD350:
Portable ultrasonic flaw detector main unit
Operating manual
Straight Beam probe
Angle-beam probe(60 degree)
Probe cable
PC software CD
Serial PC cable
AC adapter/charger
Carrying case

Additional Accessories:
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (Lemo 01-BNC)
Connection cable to probe (Lemo 01-Lemo 00)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
Test block V1
Test block V2
Test blocks DAC, ASME etc.
